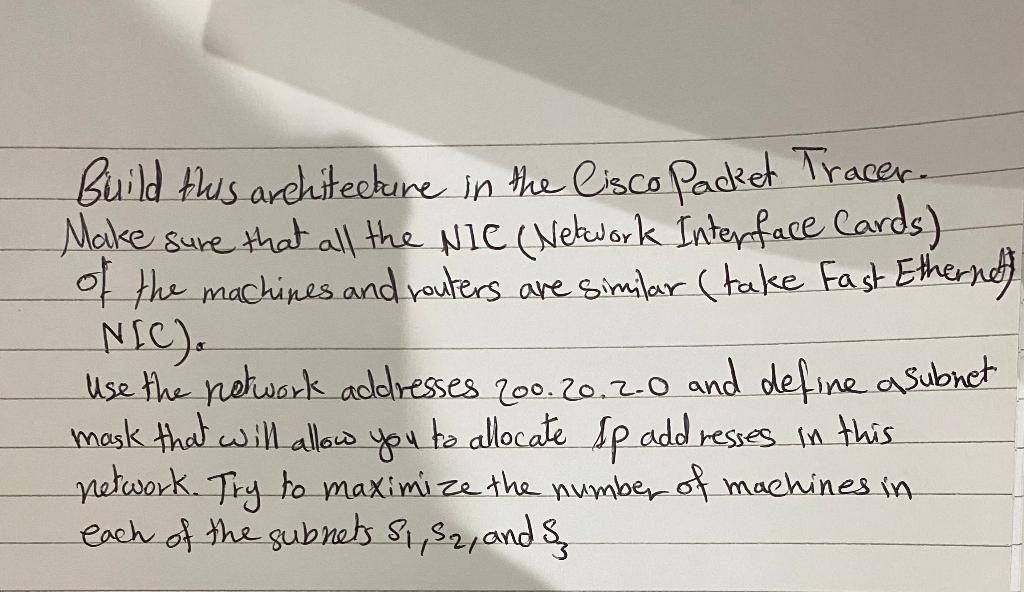

Build this architecture in the Cisco Packet Tracer. Make sure that all the NIC (Network Interface Cards) of the machines and routers are similar (take Fast Ethernet) NIC). Use the network addresses 200. 20.2.0 and define a subnet mask that will allow you to allocate IP addresses in this network. Try to maximize the number of machines in each of the subnets S₁, S2, and $₂
M11 S1 switch M12 Router switch S3 M31 M32 switch S2 M21 M22
Use packet Tracer file containing the configuration of -pkt the above network. Save it under answer. Note: Use Cisco Packet Tracer 7.3.0 Version. d it in the put the link of the file. * Screen shots showing a successful ping communication between M₁, and M₂ and M. and M31 M. 32
