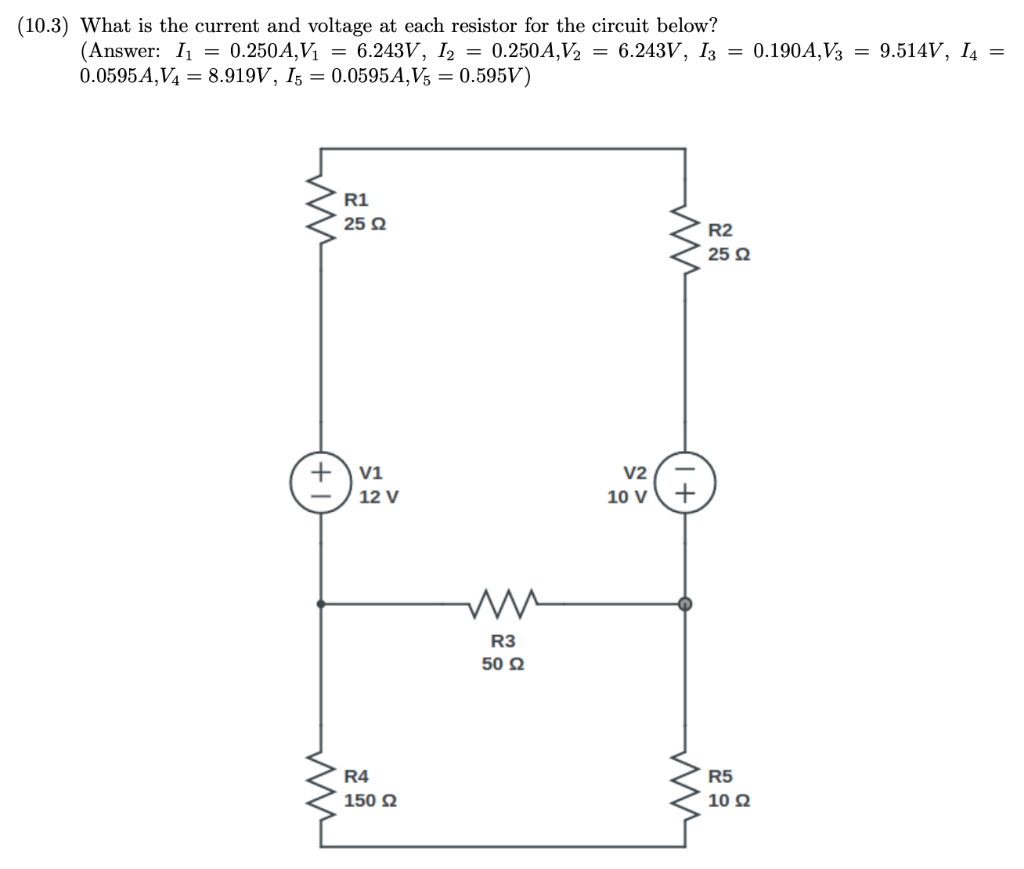

- 10 3 What Is The Current And Voltage At Each Resistor For The Circuit Below Answer I 0 250a V 6 243v I 0 1 (85.89 KiB) Viewed 42 times
- 10 3 What Is The Current And Voltage At Each Resistor For The Circuit Below Answer I 0 250a V 6 243v I 0 2 (81.06 KiB) Viewed 42 times
(11.2-11.3) A charged particle with mass m = 10.0g and charge q = 2.5C has a velocity of 100 i m/s. (a) The particle enters a uniform magnetic field given by B = 5×10-³ÊT. What is the force felt by the particle? (b) If instead the magnetic field is given by B = 3 × 10-³ +3 × 10−³ĵ+3 × 10-³ T, what is the force felt by the particle? (c) In the case of (b), the particle would experience helical motion- what is the pitch of the helix? (Answers: (a) -1.25 ĝ N, (b) -0.75ĵ+0.75k N, (c) 279.3 m)

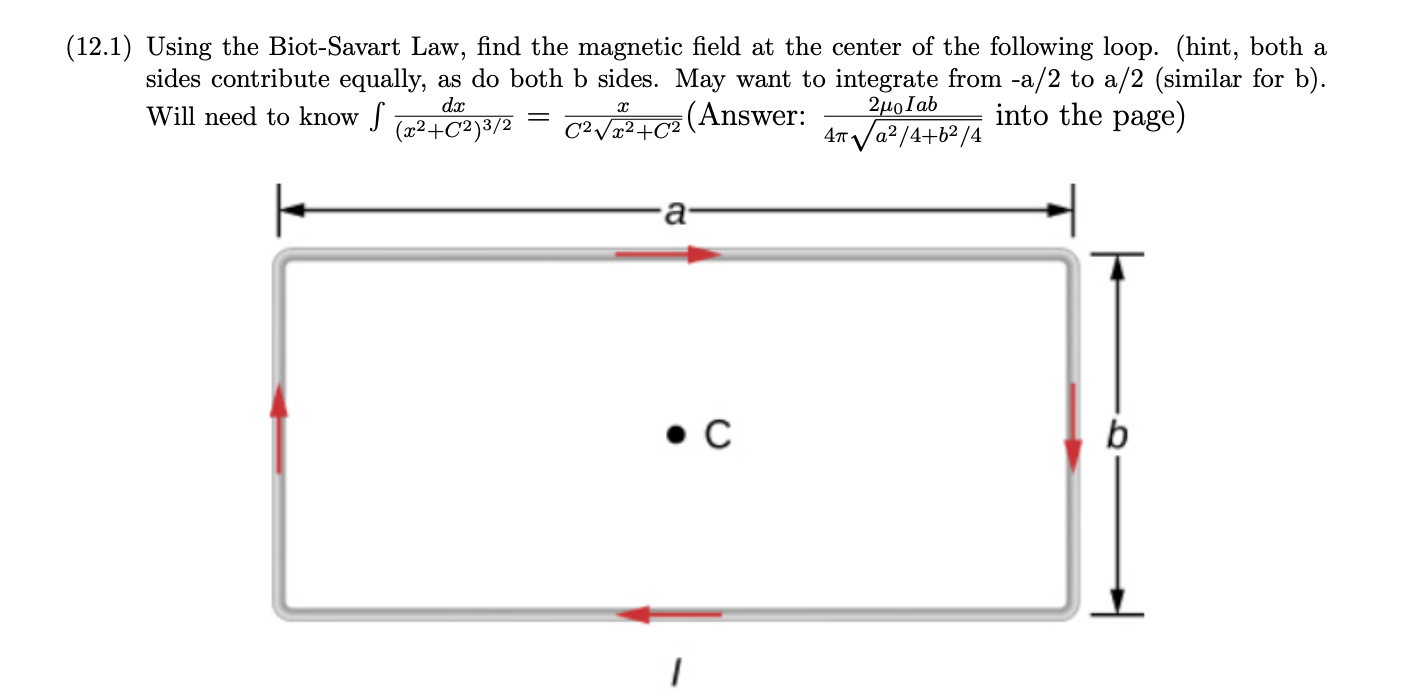

(12.1) Using the Biot-Savart Law, find the magnetic field at the center of the following loop. (hint, both a sides contribute equally, as do both b sides. May want to integrate from -a/2 to a/2 (similar for b). 2μolab Will need to know f dx (x²+C²)3/2 into the page) 4π √/a²/4+6²/4 X C²√²+² (Answer: a . C 1 b
