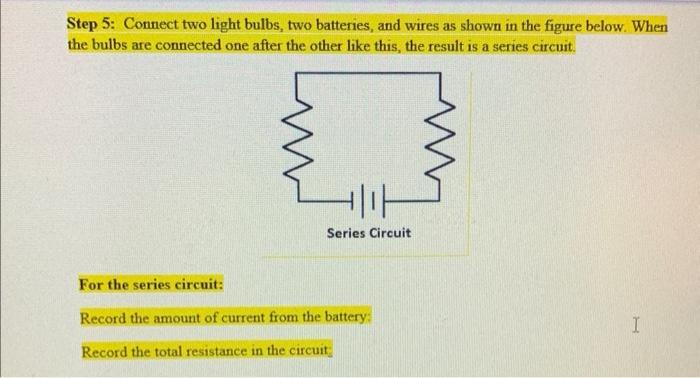

Step 5: Connect two light bulbs, two batteries, and wires as shown in the figure below. When the bulbs are connected one after the other like this, the result is a series circuit. HUH Series Circuit For the series circuit: Record the amount of current from the battery: Record the total resistance in the circuit; I

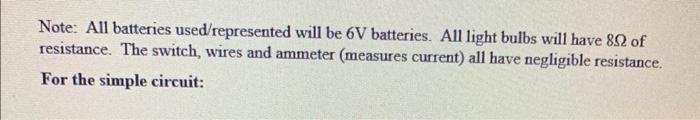

Note: All batteries used/represented will be 6V batteries. All light bulbs will have 89 of resistance. The switch, wires and ammeter (measures current) all have negligible resistance. For the simple circuit:
