Two Scales and Three Blocks Points:20 The weightless horizontal bar in the figure below is in equilibrium. Scale B reads

Post by answerhappygod »

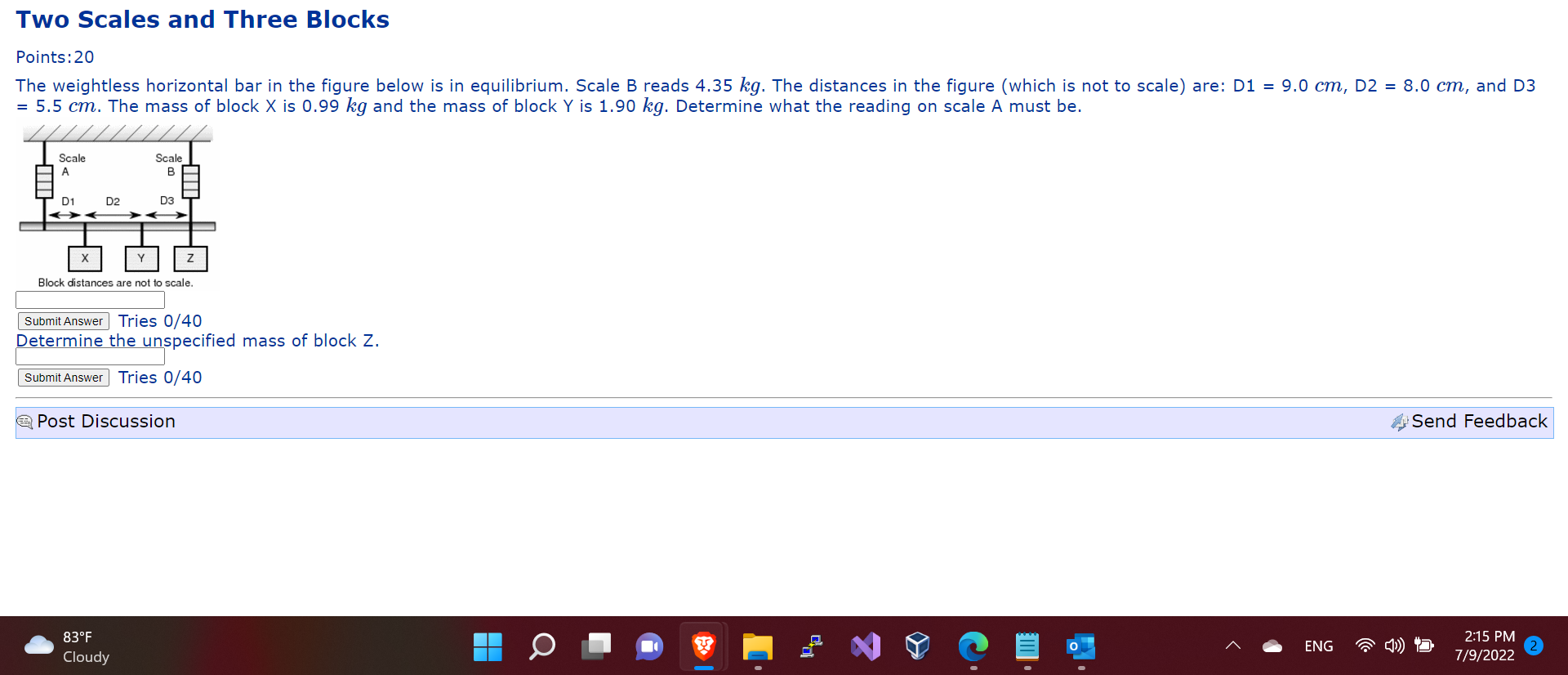

Two Scales And Three Blocks Points 20 The Weightless Horizontal Bar In The Figure Below Is In Equilibrium Scale B Reads 1
Two Scales And Three Blocks Points 20 The Weightless Horizontal Bar In The Figure Below Is In Equilibrium Scale B Reads 1 (197.8 KiB) Viewed 36 times
Two Scales and Three Blocks Points:20 The weightless horizontal bar in the figure below is in equilibrium. Scale B reads 4.35 kg. The distances in the figure (which is not to scale) are: D1 = 9.0 cm, D2 = 8.0 cm, and D3 = 5.5 cm. The mass of block X is 0.99 kg and the mass of block Y is 1.90 kg. Determine what the reading on scale A must be. Scale A D1 D2 Y Scale B X Block distances are not to scale. D3 83°F Cloudy Z Submit Answer Tries 0/40 Determine the unspecified mass of block Z. Submit Answer Tries 0/40 Post Discussion ENG Send Feedback 2:15 PM 7/9/2022
