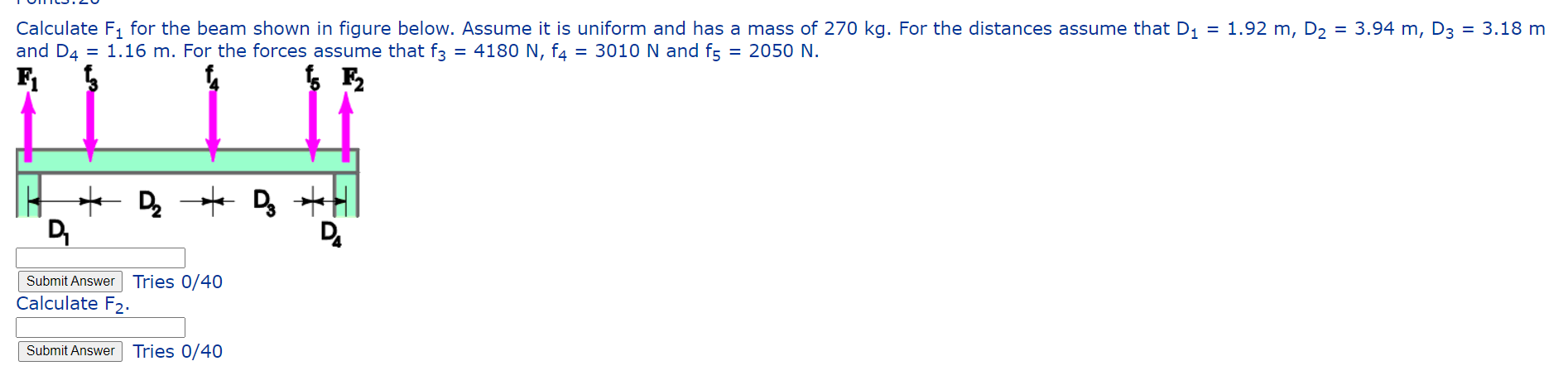

Calculate F₁ for the beam shown in figure below. Assume it is uniform and has a mass of 270 kg. For the distances assume

[answerhappygod]

Calculate F For The Beam Shown In Figure Below Assume It Is Uniform And Has A Mass Of 270 Kg For The Distances Assume 1 (46.98 KiB) Viewed 23 times

Calculate F₁ for the beam shown in figure below. Assume it is uniform and has a mass of 270 kg. For the distances assume that D₁ = 1.92 m, D₂ and D4 = 1.16 m. For the forces assume that f3 = 4180 N, f4 = 3010 N and f5 = 2050 N. F₁ F₂ D₁₂ D₁ Submit Answer Tries 0/40 Calculate F2. Submit Answer Tries 0/40 D₂ = 3.94 m, D3 = 3.18 m
