Current Attempt in Progress Wire C and wire D are made from different materials and have length Lc = Lp = 1.3 m. The res

[answerhappygod]

Current Attempt In Progress Wire C And Wire D Are Made From Different Materials And Have Length Lc Lp 1 3 M The Res 1 (51.29 KiB) Viewed 44 times

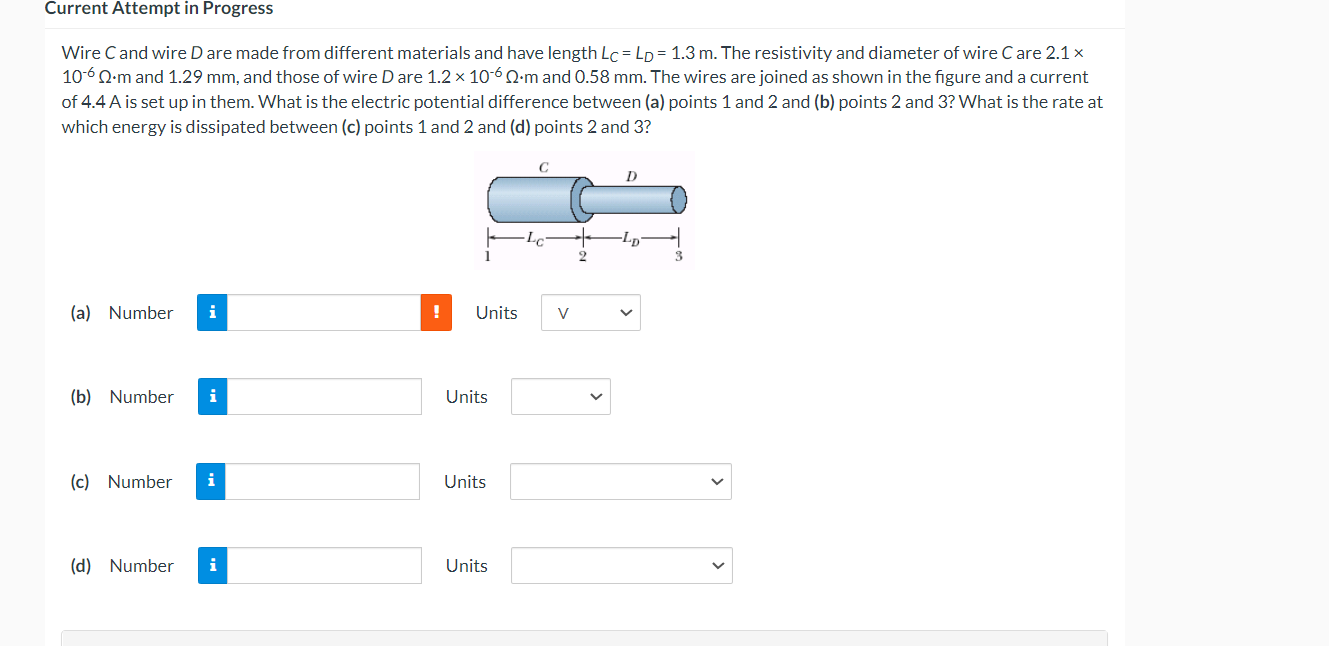

Current Attempt in Progress Wire C and wire D are made from different materials and have length Lc = Lp = 1.3 m. The resistivity and diameter of wire Care 2.1 x 10-6 Q-m and 1.29 mm, and those of wire D are 1.2 x 10-6 2-m and 0.58 mm. The wires are joined as shown in the figure and a current of 4.4 A is set up in them. What is the electric potential difference between (a) points 1 and 2 and (b) points 2 and 3? What is the rate at which energy is dissipated between (c) points 1 and 2 and (d) points 2 and 3? (a) Number i (b) Number i (c) Number i (d) Number ! Units Units Units Units C Lo V 2 D LD
