2. A three-legged stop-controlled junction with level gradient which is located in a non-CBD area is as shown in Figure

[answerhappygod]

2 A Three Legged Stop Controlled Junction With Level Gradient Which Is Located In A Non Cbd Area Is As Shown In Figure 1 (43.02 KiB) Viewed 65 times

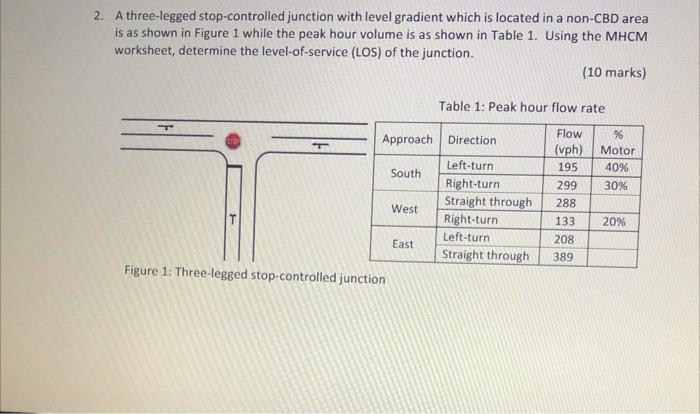

2. A three-legged stop-controlled junction with level gradient which is located in a non-CBD area is as shown in Figure 1 while the peak hour volume is as shown in Table 1. Using the MHCM worksheet, determine the level-of-service (LOS) of the junction. (10 marks) T STOP T Approach Direction Left-turn Right-turn Straight through Right-turn Left-turn Straight through Figure 1: Three-legged stop-controlled junction South West Table 1: Peak hour flow rate Flow (vph) 195 East 299 288 133 208 389 % Motor 40% 30% 20%
