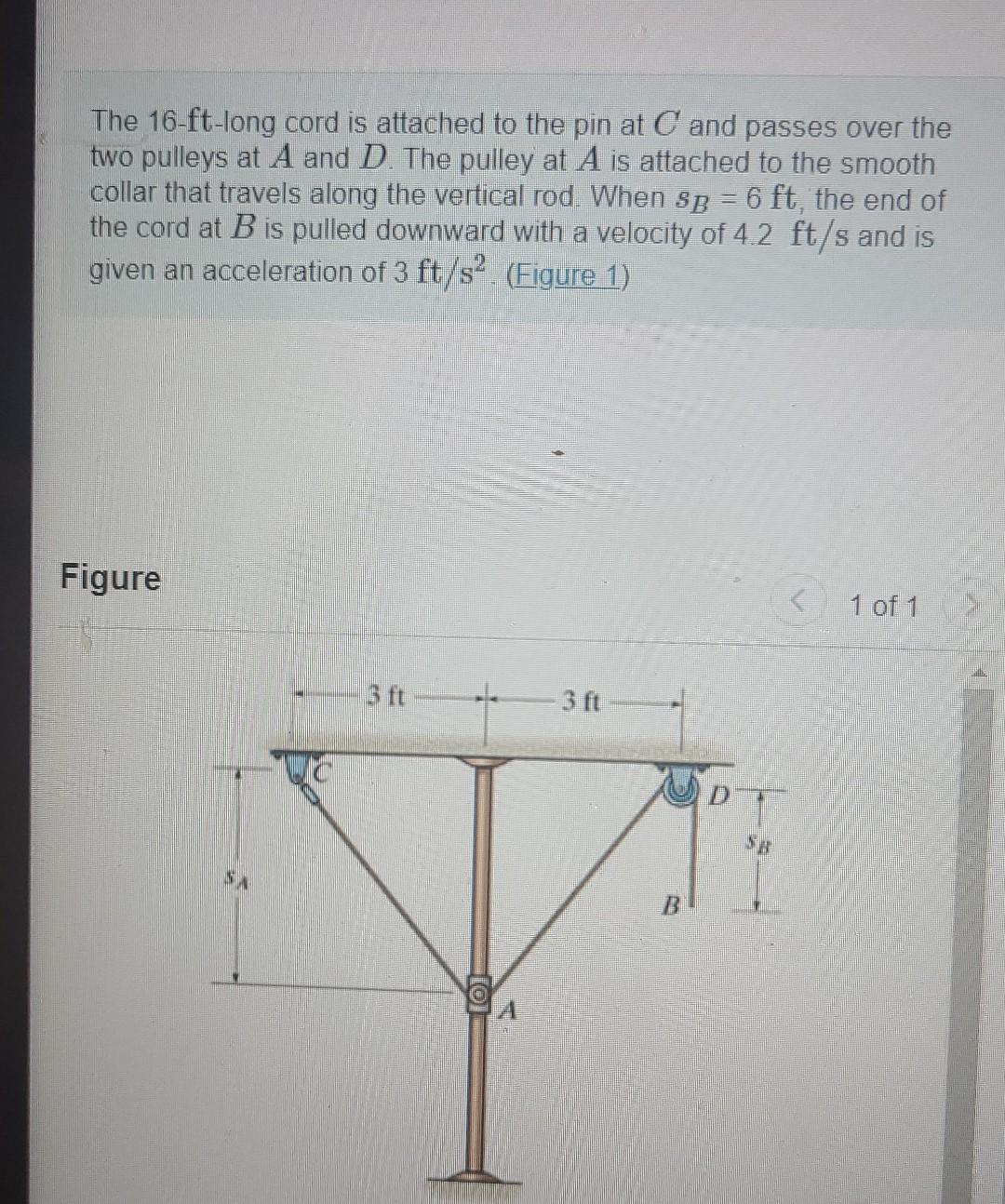

The 16-ft-long cord is attached to the pin at Cand passes over the two pulleys at A and D. The pulley at A is attached to the smooth collar that travels along the vertical rod. When sp = 6 ft, the end of the cord at B is pulled downward with a velocity of 4.2 ft/s and is given an acceleration of 3 ft/s². (Figure 1) Figure SA UC 3 ft 3 ft B < 1 of 1

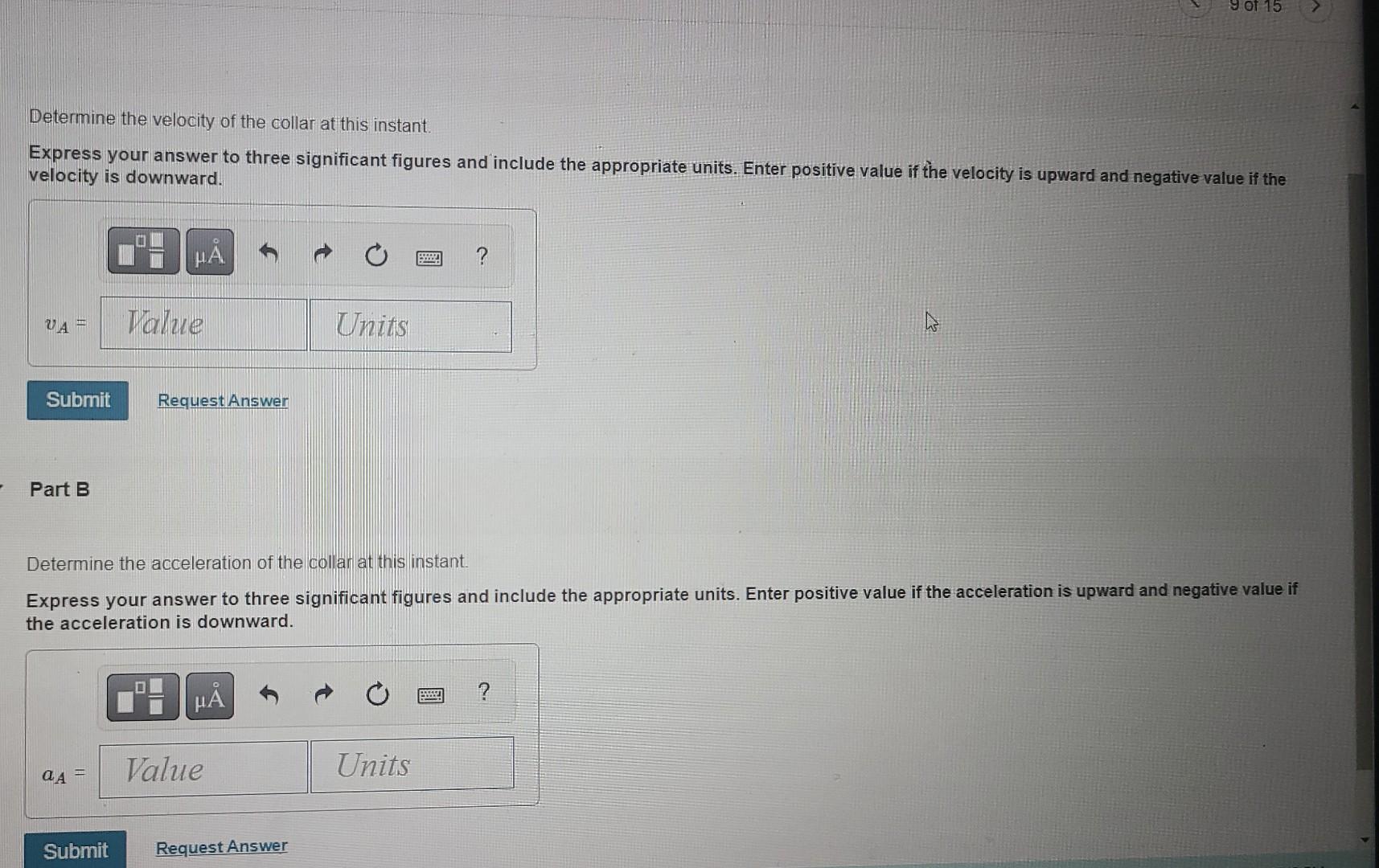

Determine the velocity of the collar at this instant. Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is upward and negative value if the velocity is downward. UA = Submit Part B aд - HÅ Submit Value Request Answer Determine the acceleration of the collar at this instant. Express your answer to three significant figures and include the appropriate units. Enter positive value if the acceleration is upward and negative value if the acceleration is downward. HÅ Value Units Request Answer 9 of 15 ? Units
