The W Block Weighs 46 N And The W Block Weighs 23 N The Coefficient Of Static Friction Between The Upper And Lower Bl 1 (120.71 KiB) Viewed 56 times
Give Answer quickly

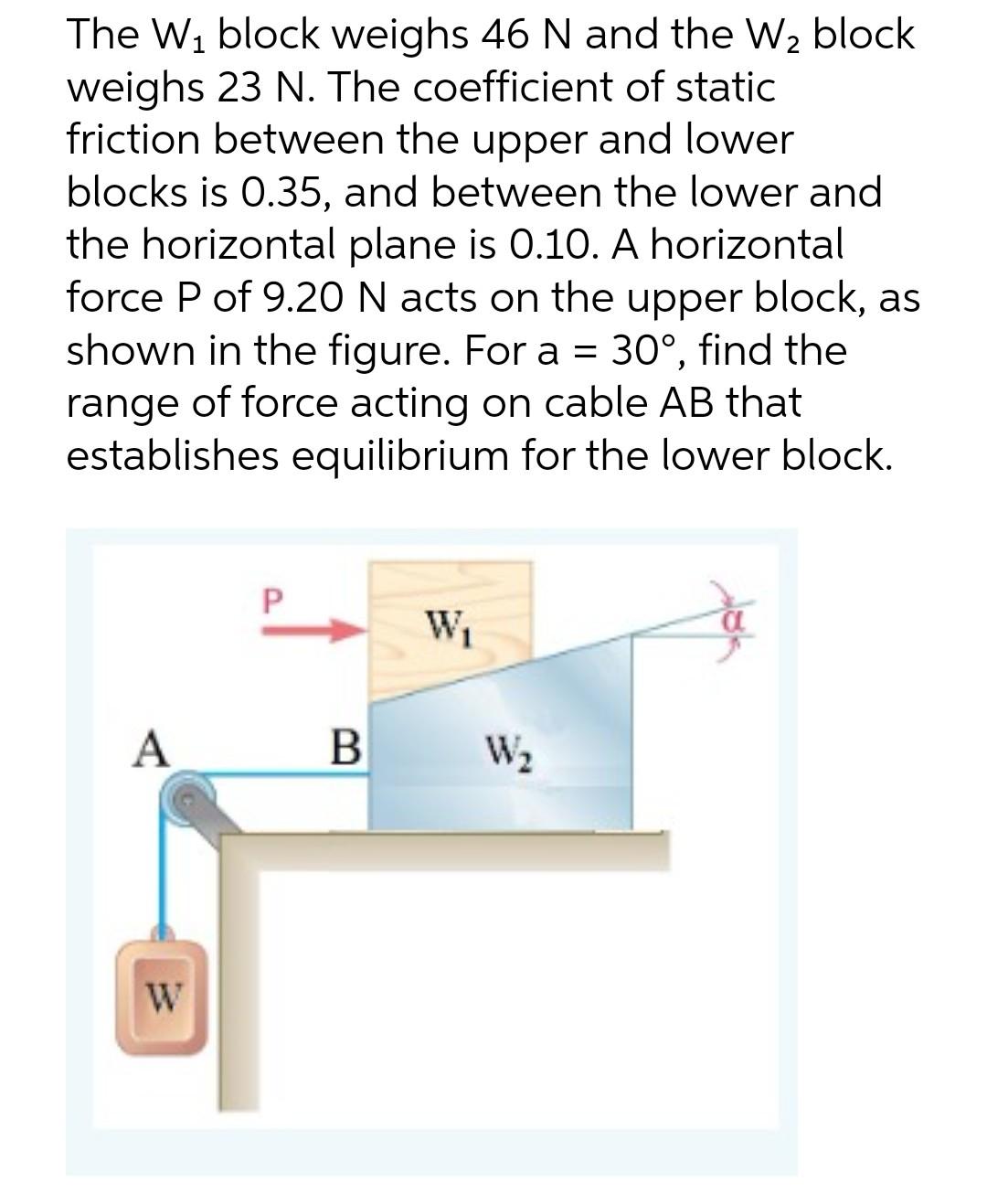

The W₁ block weighs 46 N and the W₂ block weighs 23 N. The coefficient of static friction between the upper and lower blocks is 0.35, and between the lower and the horizontal plane is 0.10. A horizontal force P of 9.20 N acts on the upper block, as shown in the figure. For a = 30°, find the range of force acting on cable AB that establishes equilibrium for the lower block. A W P B W₂
