3. A balanced delta-connected load, with Z₁ = 9.0 30° , and a balance wye-connected load with Zy = 5.0 Z 45° , are suppl

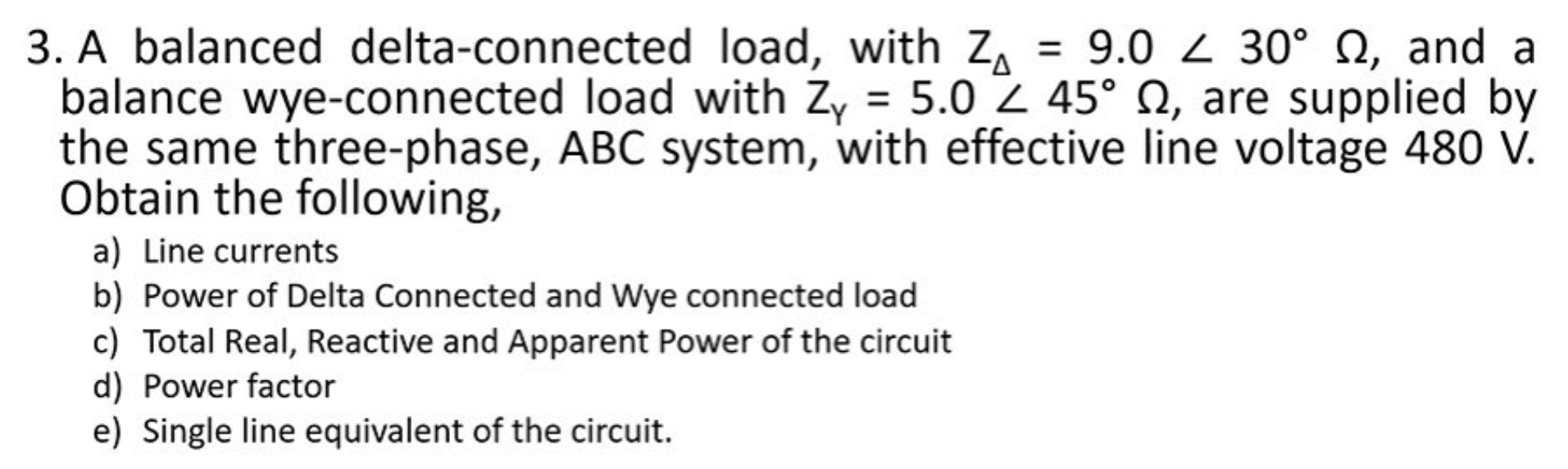

3. A balanced delta-connected load, with Z₁ = 9.0 30° , and a balance wye-connected load with Zy = 5.0 Z 45° , are supplied by the same three-phase, ABC system, with effective line voltage 480 V. Obtain the following, a) Line currents b) Power of Delta Connected and Wye connected load c) Total Real, Reactive and Apparent Power of the circuit d) Power factor e) Single line equivalent of the circuit.
