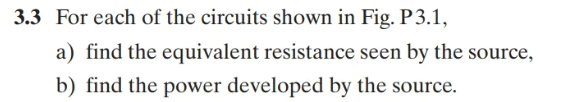

3.3 For each of the circuits shown in Fig. P3.1, a) find the equivalent resistance seen by the source, b) find the power developed by the source.

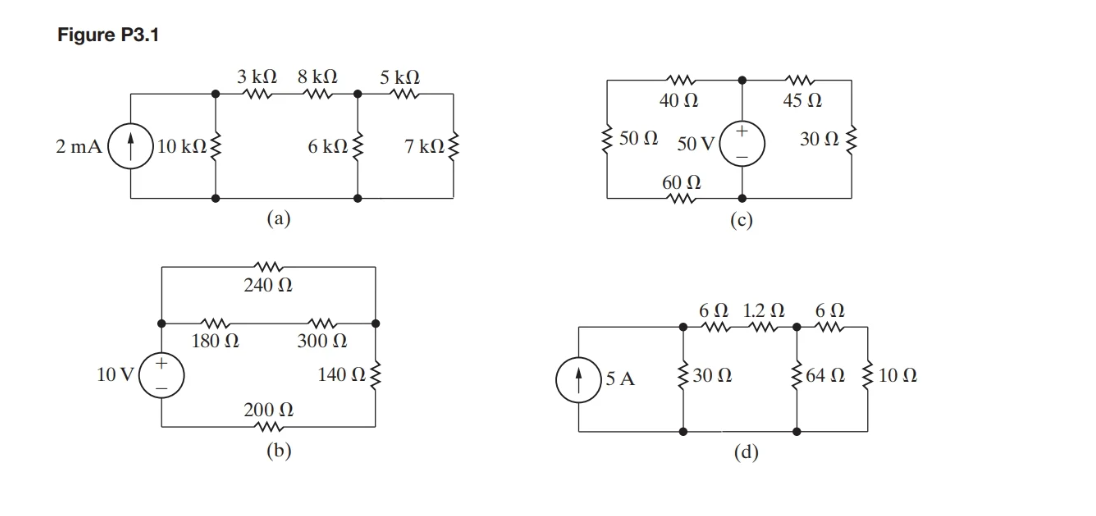

Figure P3.1 2 mA 10 V 10 ΚΩΣ 180 Ω 3kΩ 8 ΚΩ (a) ww 240 Ω 200 Ω (b) 6ΚΩΣ ww 300 Ω 5 ΚΩ www 140 ΩΣ 7 ΚΩΣ m 40 Q 50 Ω 50 V 15 A 60 ww (c) €30 Ω 45 Ω 6Ω 12Ω 6Ω www.m (d) 30 Ω Σ Σ64Ω Σ10Ω
