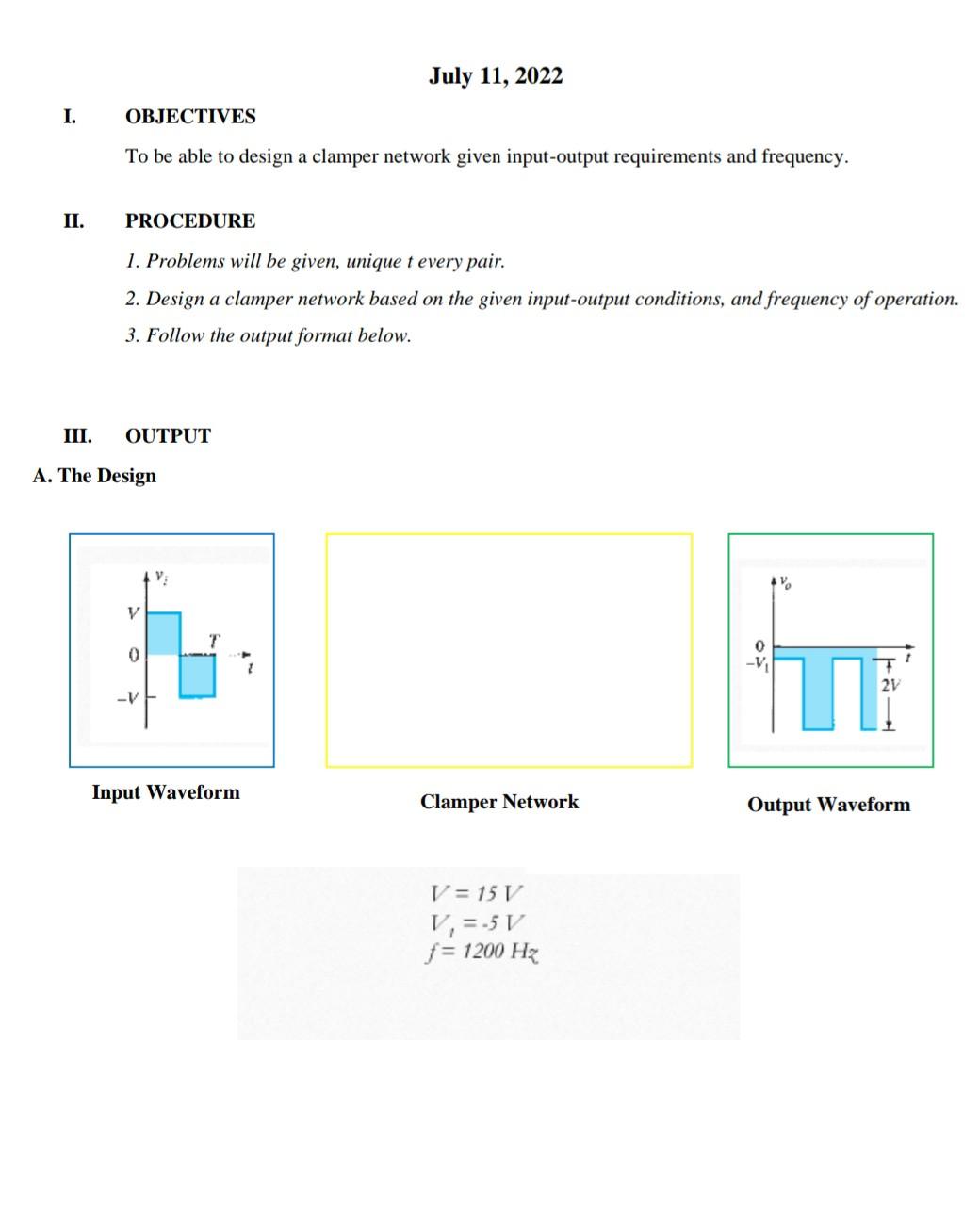

I. II. OBJECTIVES To be able to design a clamper network given input-output requirements and frequency. PROCEDURE 1. Problems will be given, unique t every pair. 2. Design a clamper network based on the given input-output conditions, and frequency of operation. 3. Follow the output format below. OUTPUT III. A. The Design V 0 -V July 11, 2022 V₁ Input Waveform Clamper Network V = 15 V V₁ = -5 V f = 1200 Hz 0 -V₁ 1% TH Output Waveform

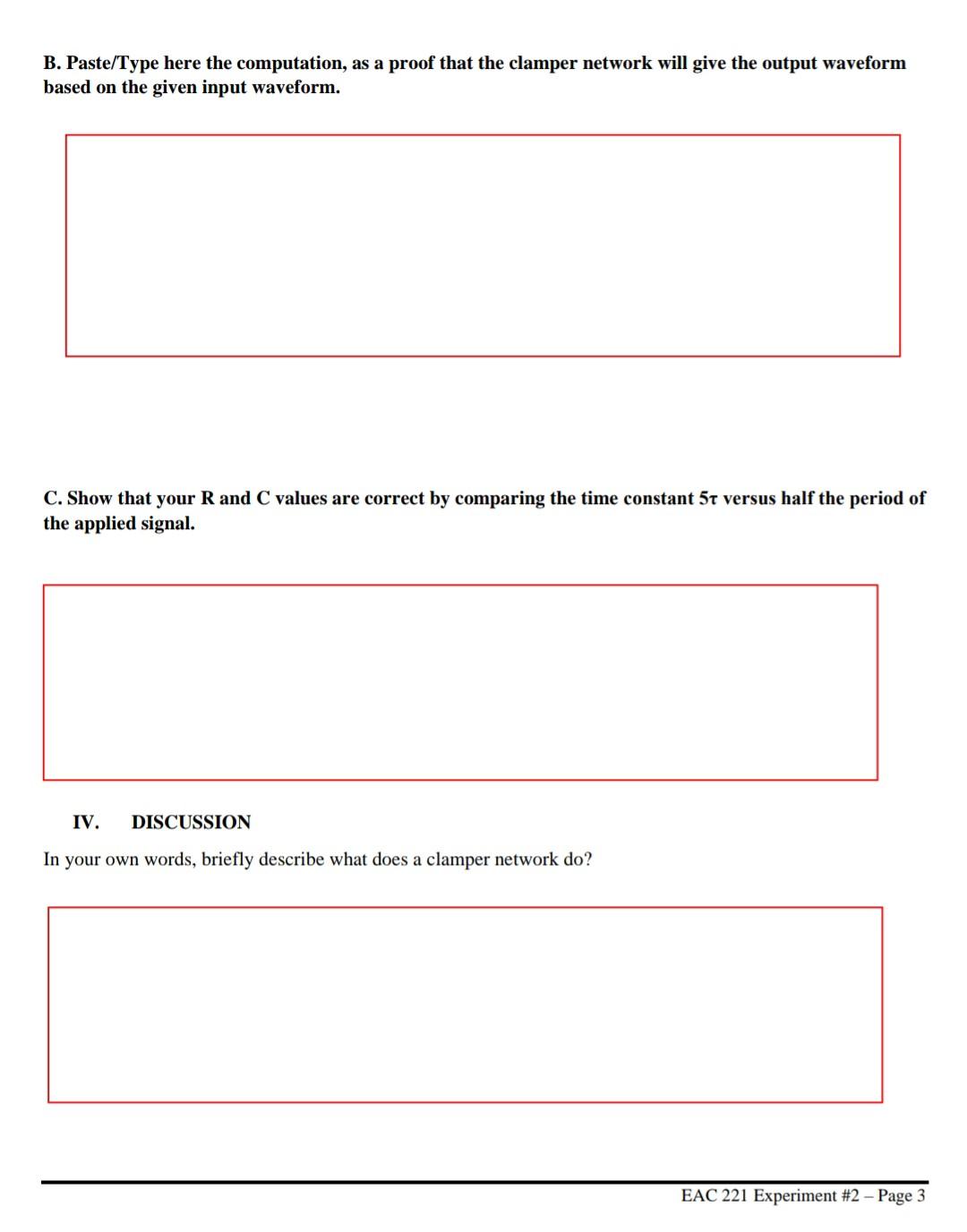

B. Paste/Type here the computation, as a proof that the clamper network will give the output waveform based on the given input waveform. C. Show that your R and C values are correct by comparing the time constant 57 versus half the period of the applied signal. DISCUSSION IV. In your own words, briefly describe what does a clamper network do? EAC 221 Experiment #2 - Page 3
