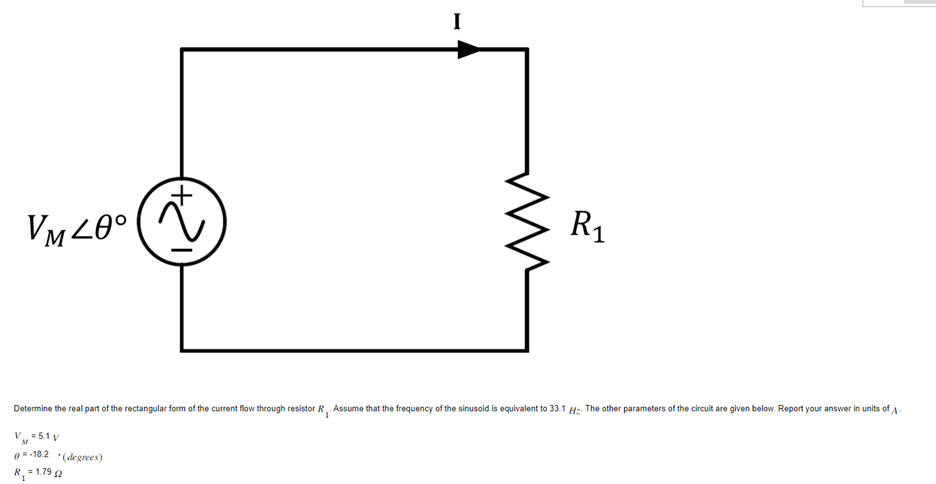

Vm 40 R Determine The Real Part Of The Rectangular Form Of The Current Flow Through Resistor R Assume That The Freque 1 (38.15 KiB) Viewed 36 times
Determine the real part of the rectangular form of the currentthrough the resistor R1. Assume that the frequency ofthe sinusoid is equivalent to 33.1 Hz. The other parameterof the circuit are given below. Report your answer in units ofA.
Vm= 5.1 volts
Theta= -18.2 degrees
R1= 1.79 ohms
VM 40° R₁ Determine the real part of the rectangular form of the current flow through resistor R. Assume that the frequency of the sinusoid is equivalent to 33.1 H. The other parameters of the circuit are given below. Report your answer in units of A V₁ = 5.1 V M @=-18.2 (degrees) R₁ = 1.792 1
