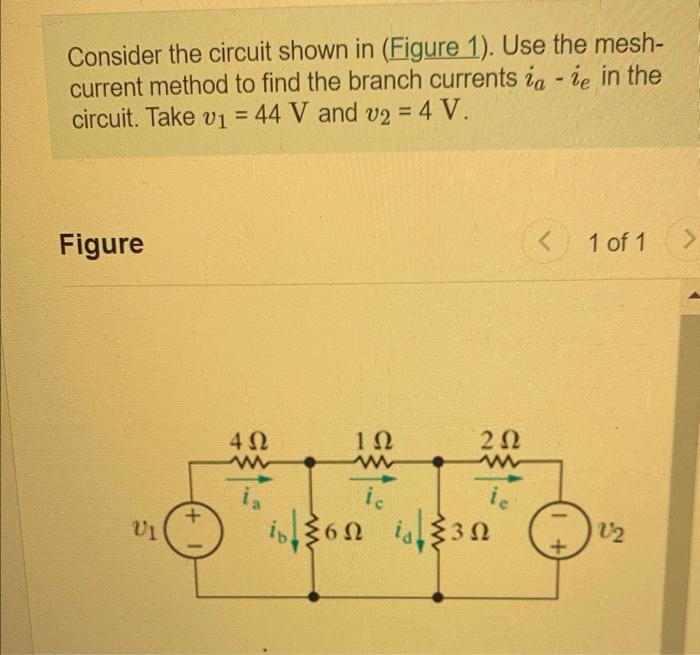

Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia-te in the circuit.

[answerhappygod]

Consider The Circuit Shown In Figure 1 Use The Mesh Current Method To Find The Branch Currents Ia Te In The Circuit 1 (52.94 KiB) Viewed 47 times

This is all one question.
Express answers to 3 sig figs
find i_a Part A
find i_b Part B
find i_c Part C
find i_d Part D
find i_e Part E
find the total power developed in the circuit
Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia-te in the circuit. Take v₁ = 44 V and v2 = 4 V. Figure U1 +1 4 Ω ΤΩ www ic 202 ic < 1 of 1 U2 >
