3. For the circuits below, assume all diodes are ideal. Sketch the output for the input (v) shown. Label the most positi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. For the circuits below, assume all diodes are ideal. Sketch the output for the input (v) shown. Label the most positi

Post by answerhappygod »

3 For The Circuits Below Assume All Diodes Are Ideal Sketch The Output For The Input V Shown Label The Most Positi 1
3 For The Circuits Below Assume All Diodes Are Ideal Sketch The Output For The Input V Shown Label The Most Positi 1 (19.25 KiB) Viewed 41 times

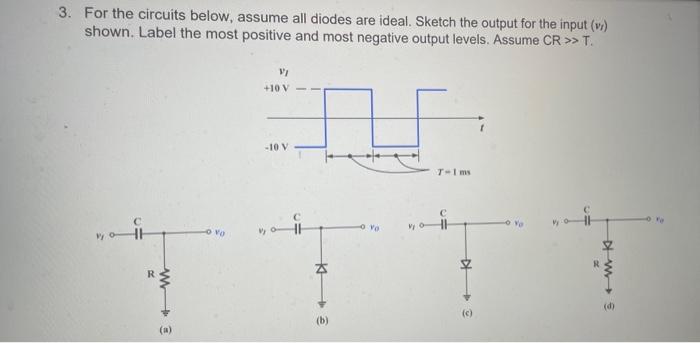

3. For the circuits below, assume all diodes are ideal. Sketch the output for the input (v) shown. Label the most positive and most negative output levels. Assume CR >> T. IV B M3 Vo VI +10 V -10 V (b) Yo T-1 ms K (c) No (d)
