For the circuit shown, a. Draw the phasor-transformed circuit b. Find the phasor I and time domain signal i(t). C. Find

Post by answerhappygod »

For The Circuit Shown A Draw The Phasor Transformed Circuit B Find The Phasor I And Time Domain Signal I T C Find 1
For The Circuit Shown A Draw The Phasor Transformed Circuit B Find The Phasor I And Time Domain Signal I T C Find 1 (18.42 KiB) Viewed 43 times

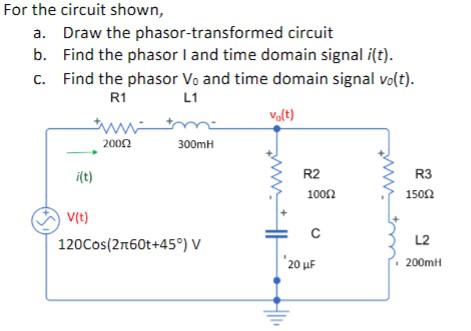

For the circuit shown, a. Draw the phasor-transformed circuit b. Find the phasor I and time domain signal i(t). C. Find the phasor Vo and time domain signal vo(t). R1 L1 vo(t) V(t) 20002 300mH 120Cos(2n60t+45°) V R2 10002 C 20 μF R3 15002 L2 200mH
