(b) you to analyse a single phase inverter utilizing thyristors that supply an RL load (R=1092 and L-25mH). Given that t

Post by answerhappygod »

B You To Analyse A Single Phase Inverter Utilizing Thyristors That Supply An Rl Load R 1092 And L 25mh Given That T 1
B You To Analyse A Single Phase Inverter Utilizing Thyristors That Supply An Rl Load R 1092 And L 25mh Given That T 1 (38.15 KiB) Viewed 42 times

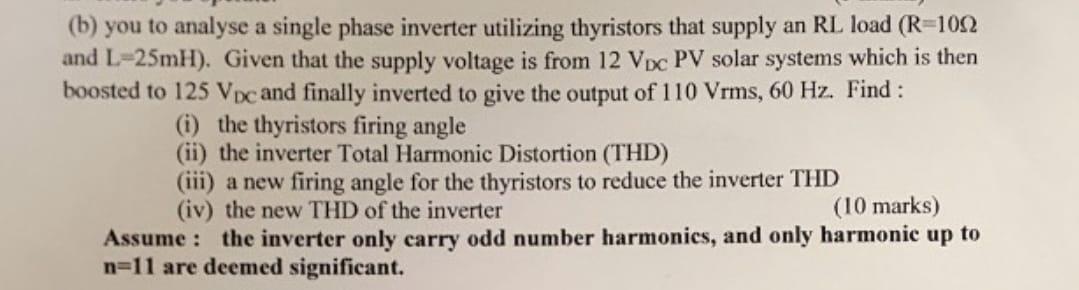

(b) you to analyse a single phase inverter utilizing thyristors that supply an RL load (R=1092 and L-25mH). Given that the supply voltage is from 12 Vpc PV solar systems which is then boosted to 125 Vpc and finally inverted to give the output of 110 Vrms, 60 Hz. Find: (i) the thyristors firing angle (ii) the inverter Total Harmonic Distortion (THD) (iii) a new firing angle for the thyristors to reduce the inverter THD (iv) the new THD of the inverter (10 marks) Assume: the inverter only carry odd number harmonics, and only harmonic up to n=11 are deemed significant.
