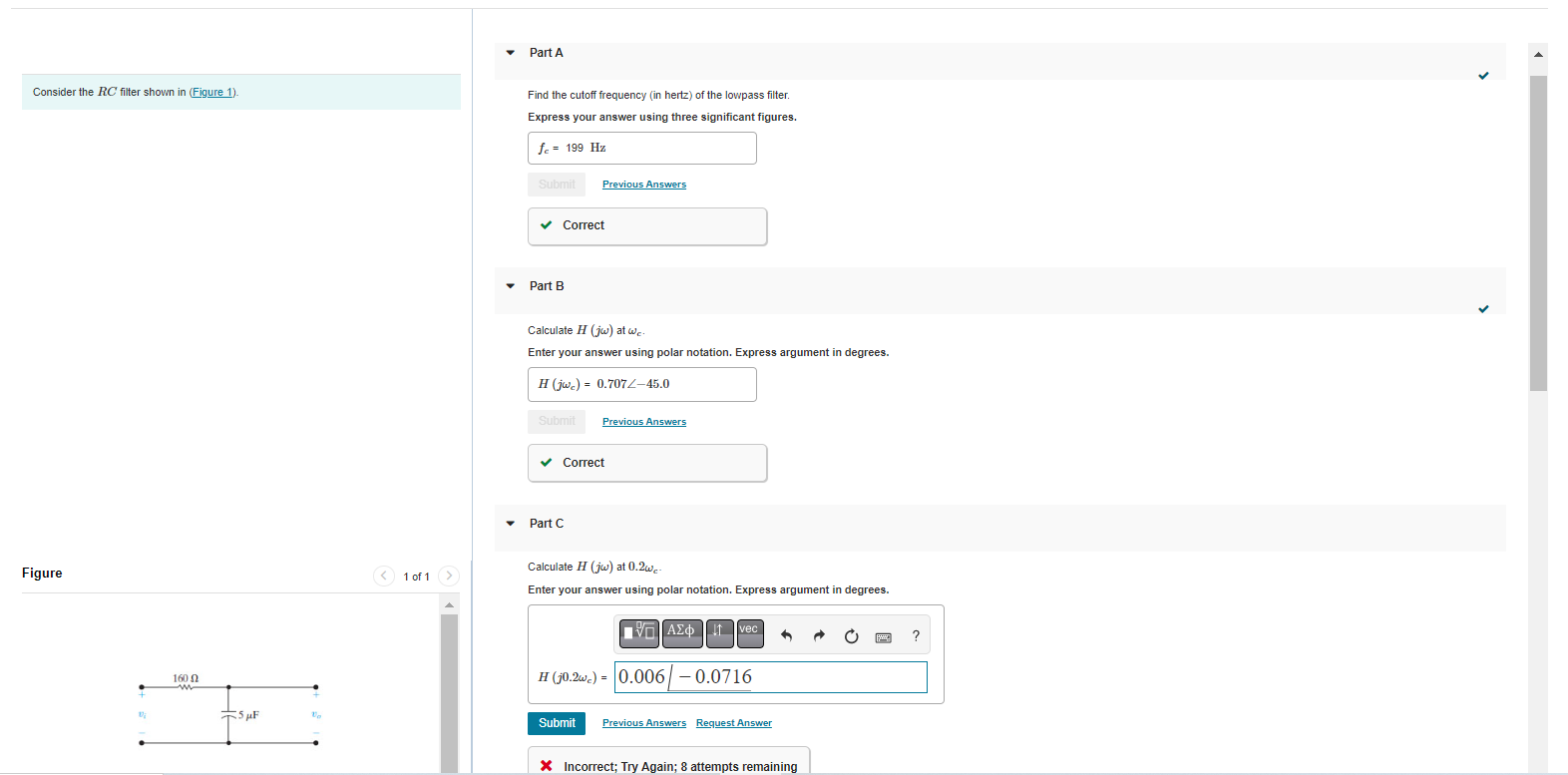

Consider the RC filter shown in (Figure 1). Figure V₂ 1600 5 μF 1 of 1 Part D Calculate H (jw) at 10w. Enter your answer using polar notation. Express argument in degrees. H (j10w)= 0.141/-81.86 Submit Previous Answers Request Answer * Incorrect; Try Again; 9 attempts remaining Part E V, w, p= A£¢vec If v; = 35coswt mV, what is the steady-state expression for 1, when w=we? Suppose that vo(t) = V cos(wt + o), where -180° << 180°. Determine the values V, w, $. Express your answers using three significant figures separated by commas. LIVE ΑΣΦΠ Ivec Submit ▾ Part F V,w.o= Submit Request Answer ? If v; = 35coswt mV, what is the steady-state expression for when w=0.2we? Suppose that vo(t) = V cos(wt + o), where -180° << 180°. Determine the values V, w, p. Express your answers using three significant figures separated by commas. V-ΑΣΦΗΜ Request Answer ? ? mV, rad/s, ° mV, rad/s, °
Figure Vi 160 2 SuF < 1 of 1 Part G If v; = 35coswt mV, what is the steady-state expression for u, when w=10w? Suppose that vo(t) = V cos(wt + o), where -180° << 180°. Determine the values V, w, o. Express your answers using three significant figures separated by commas. —| ΑΣΦΗ. vec V.w.o= Submit Provide Feedback Request Answer P Pearson ? mV, rad/s, ° Copyright © 2022 Pearson Education Inc. All rights reserved. | Terms of Use | Privacy Policy | Permissions | Contact Us | Next >
