Problem 2 For the network in the figure: a. Determine AVNL, Zi, and Zo. b. Determine AVL and Avs. +1 R₁ 1 kQ 10 μF 560 Κ

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 2 For the network in the figure: a. Determine AVNL, Zi, and Zo. b. Determine AVL and Avs. +1 R₁ 1 kQ 10 μF 560 Κ

Post by answerhappygod »

1
1 (153.21 KiB) Viewed 29 times

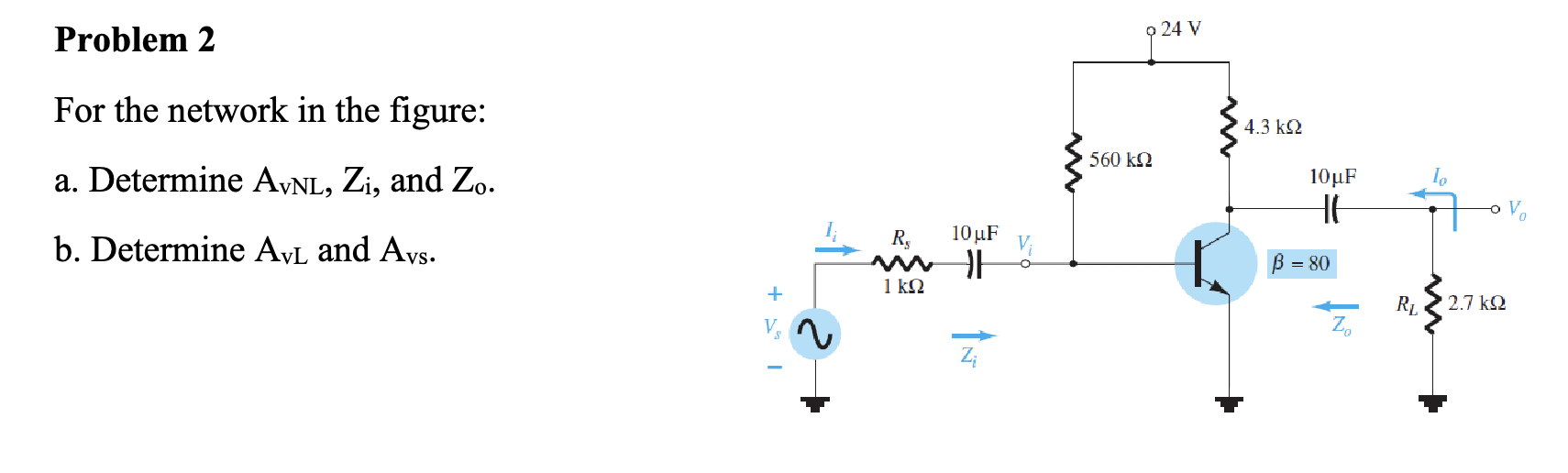

Problem 2 For the network in the figure: a. Determine AVNL, Zi, and Zo. b. Determine AVL and Avs. +1 R₁ 1 kQ 10 μF 560 ΚΩ 24 V | 4.3 ΚΩ 10μF HE B = 80 - RL Io 2.7 ΚΩ
