Referring to Figure A5, the load voltage is V₁ : = 18V 60°; the turns ratio is 3:1; and the load current is IL = 3A/30°.

Post by answerhappygod »

Referring To Figure A5 The Load Voltage Is V 18v 60 The Turns Ratio Is 3 1 And The Load Current Is Il 3a 30 1
Referring To Figure A5 The Load Voltage Is V 18v 60 The Turns Ratio Is 3 1 And The Load Current Is Il 3a 30 1 (69.9 KiB) Viewed 52 times

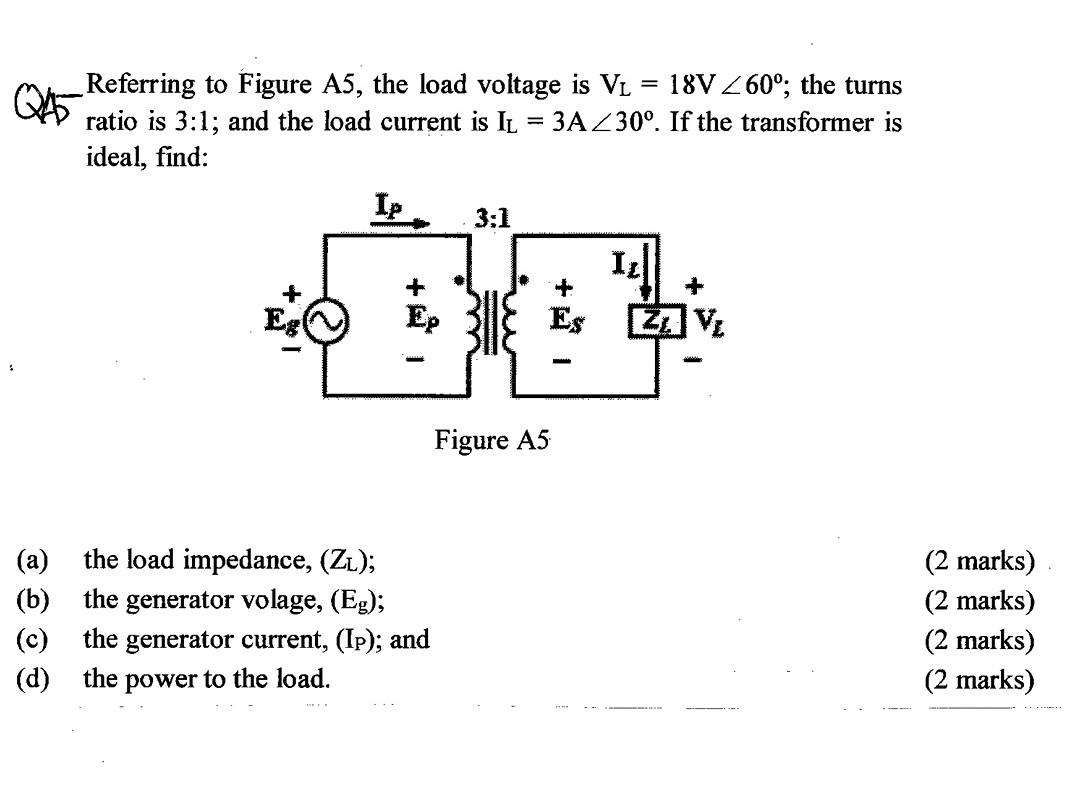

Referring to Figure A5, the load voltage is V₁ : = 18V 60°; the turns ratio is 3:1; and the load current is IL = 3A/30°. If the transformer is ideal, find: € + Eg Ep (a) the load impedance, (ZL); (b) the generator volage, (Eg); (c) the generator current, (Ip); and (d) the power to the load. 3:1 Figure A5 IL www (2 marks) (2 marks) (2 marks) (2 marks) H
