4. 15.4 The low-pass filter designed in Problem 15.3 has an input of 2cosot V. 1. Suppose the power supplies are +Vcc. W

Post by answerhappygod »

4 15 4 The Low Pass Filter Designed In Problem 15 3 Has An Input Of 2cosot V 1 Suppose The Power Supplies Are Vcc W 1
4 15 4 The Low Pass Filter Designed In Problem 15 3 Has An Input Of 2cosot V 1 Suppose The Power Supplies Are Vcc W 1 (166.22 KiB) Viewed 41 times

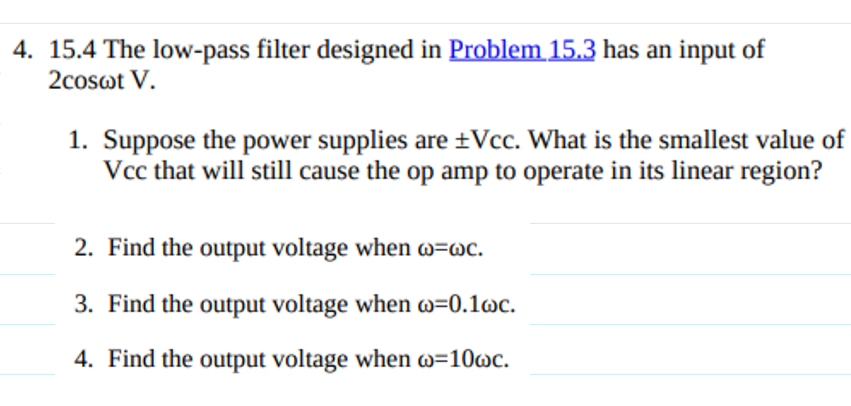

4. 15.4 The low-pass filter designed in Problem 15.3 has an input of 2cosot V. 1. Suppose the power supplies are +Vcc. What is the smallest value of Vcc that will still cause the op amp to operate in its linear region? 2. Find the output voltage when w-wc. 3. Find the output voltage when w=0.1@c. 4. Find the output voltage when w=106c.
+ V₂ 85 m 6452 m SUF + 2°
