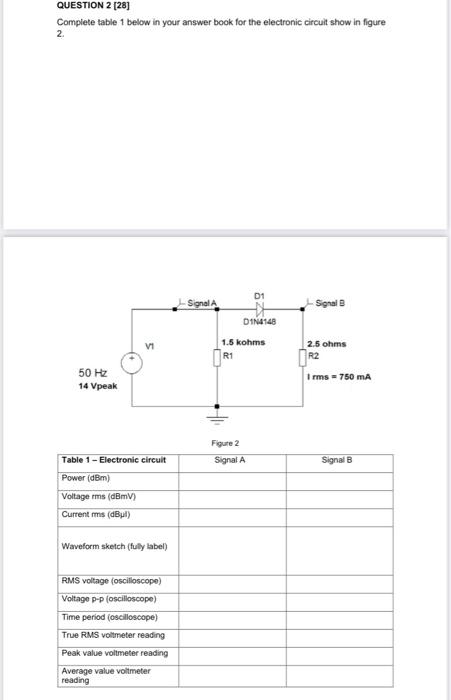

QUESTION 2 [28] Complete table 1 below in your answer book for the electronic circuit show in in figure 2. 50 Hz 14 Vpea

[answerhappygod]

Question 2 28 Complete Table 1 Below In Your Answer Book For The Electronic Circuit Show In In Figure 2 50 Hz 14 Vpea 1 (25.67 KiB) Viewed 73 times

QUESTION 2 [28] Complete table 1 below in your answer book for the electronic circuit show in in figure 2. 50 Hz 14 Vpeak VI Table 1- Electronic circuit Power (dBm) Voltage rms (dBmV) Current mms (dBμl) Waveform sketch (fully label) RMS voltage (oscilloscope) Voltage p-p (oscilloscope) Time period (oscilloscope) True RMS voltmeter reading Peak value voltmeter reading Average value voltmeter reading Signal A D1N4148 1.5 kohms R1 Figure 2 Signal A Signal B 2.5 ohms R2 Irms = 750 mA Signal B
