Consider a 6 stage pipeline processor. The number of cycles needed in stages FI - fetch instruction, DI- Decode Instruct

[answerhappygod]

Consider A 6 Stage Pipeline Processor The Number Of Cycles Needed In Stages Fi Fetch Instruction Di Decode Instruct 1 (583.77 KiB) Viewed 64 times

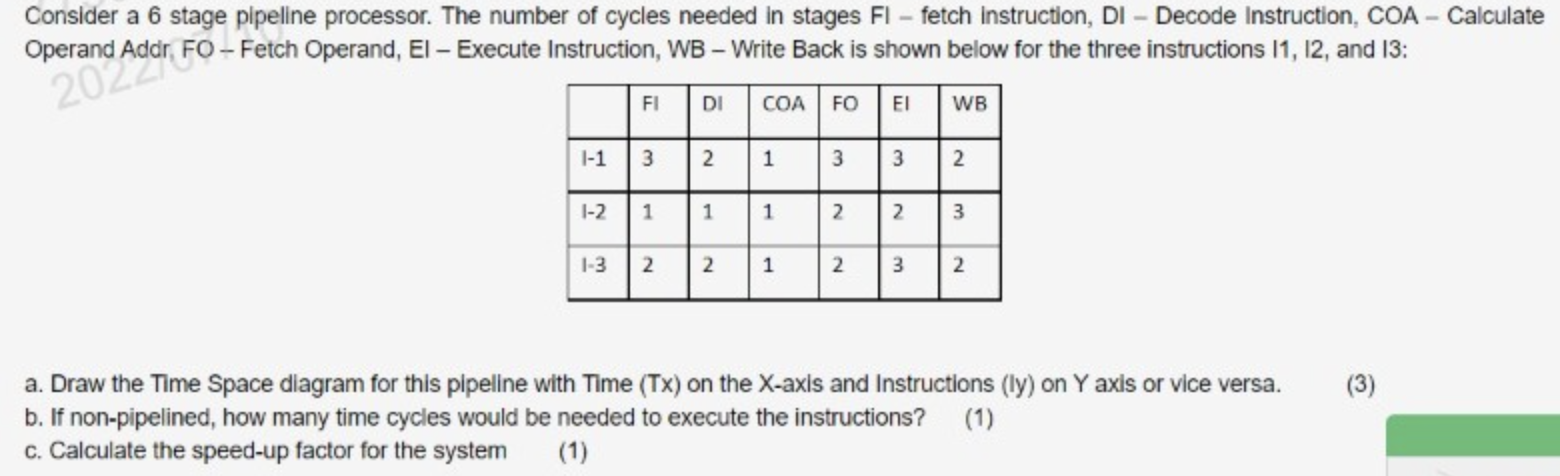

Consider a 6 stage pipeline processor. The number of cycles needed in stages FI - fetch instruction, DI- Decode Instruction, COA - Calculate - - perand Addr, FO - Fetch Operand, El - Execute Instruction, WB - White Back is shown below for the three instructions 11, 12, and 13: FI DI COA FO EI WB 3 2 3 3 1-1 1-2 1-3 1 2 1 2 1 1 1 2 2 2 2 3 3 2 a. Draw the Time Space diagram for this pipeline with Time (Tx) on the X-axis and Instructions (ly) on Y axis or vice versa. (3) b. If non-pipelined, how many time cycles would be needed to execute the instructions? (1) (1) c. Calculate the speed-up factor for the system
