Q5 (10 Points) Express the complement of the following functions in sum-of-minterms form: (a) F(A,B,C, D) = Σm(2, 4, 7,

[answerhappygod]

1 (96.04 KiB) Viewed 57 times

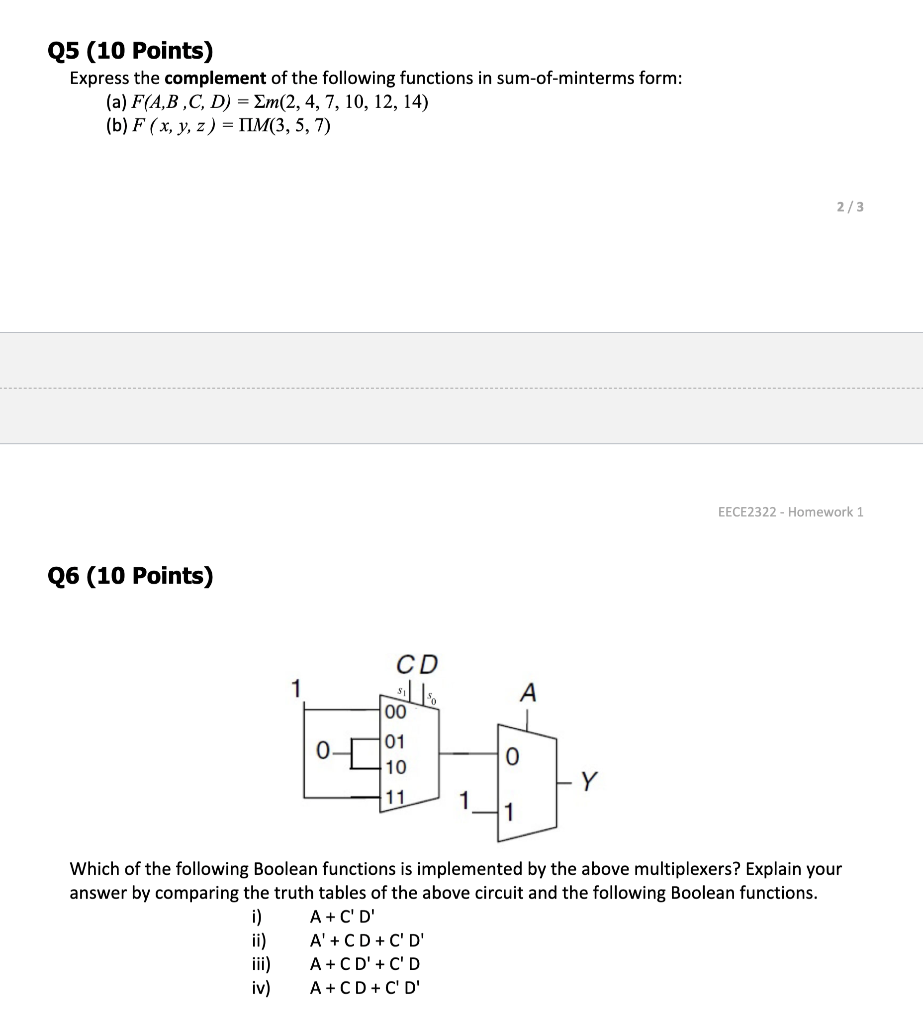

Q5 (10 Points) Express the complement of the following functions in sum-of-minterms form: (a) F(A,B,C, D) = Σm(2, 4, 7, 10, 12, 14) (b) F(x, y, z) = TIM(3, 5, 7) Q6 (10 Points) 1 0 CD 00 01 10 11 1 A'+CD+C'D' A+CD'+C'D A+CD+C D' A 0 2/3 EECE2322 - Homework 1 Which of the following Boolean functions is implemented by the above multiplexers? Explain your answer by comparing the truth tables of the above circuit and the following Boolean functions. i) A + C'D' ii) iii) iv)
