I thank you in advance for your help with the below exercise. I have been traying to work on it in order to find the ans

[answerhappygod]

I thank you in advance for your help with the below exercise. Ihave been traying to work on it in order to find the answer of thebelow questions.

I Thank You In Advance For Your Help With The Below Exercise I Have Been Traying To Work On It In Order To Find The Ans 1 (139.11 KiB) Viewed 46 times

I Thank You In Advance For Your Help With The Below Exercise I Have Been Traying To Work On It In Order To Find The Ans 2 (141.95 KiB) Viewed 46 times

I Thank You In Advance For Your Help With The Below Exercise I Have Been Traying To Work On It In Order To Find The Ans 3 (54.67 KiB) Viewed 46 times

I Thank You In Advance For Your Help With The Below Exercise I Have Been Traying To Work On It In Order To Find The Ans 4 (115.18 KiB) Viewed 46 times

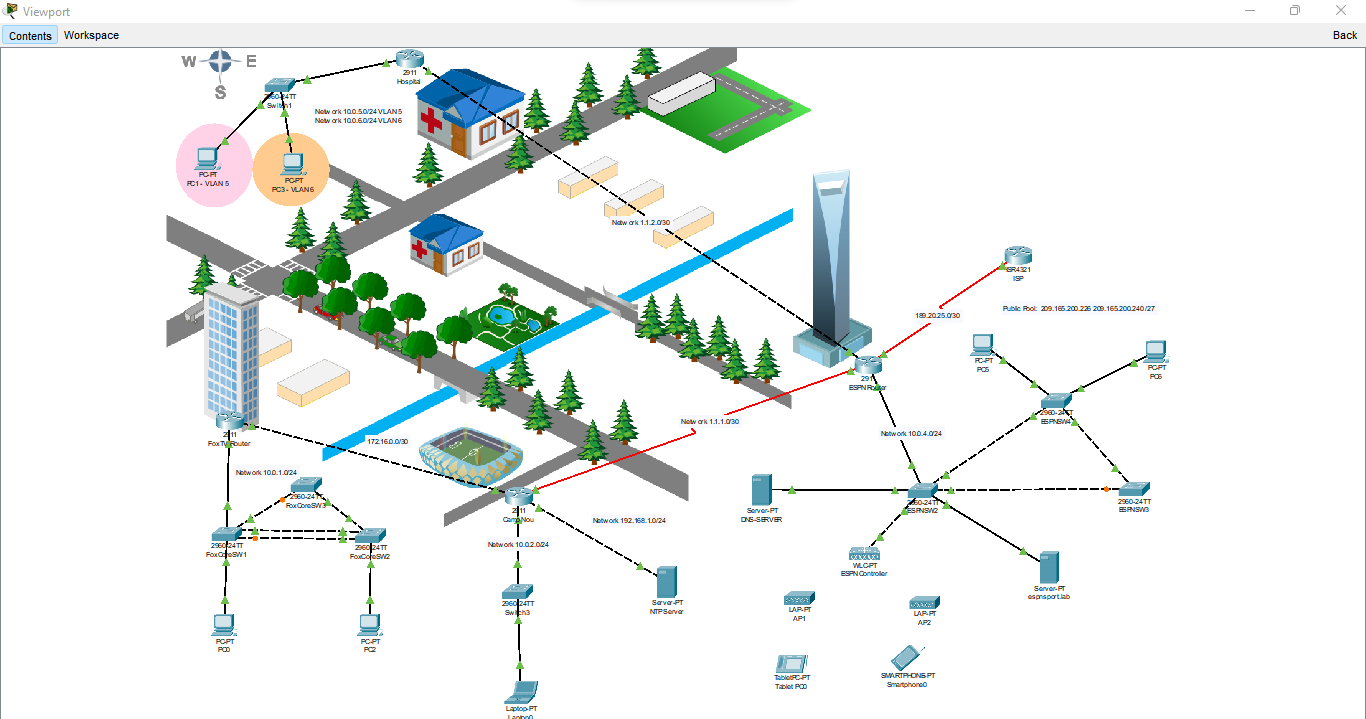

Viewport Contents Workspace W S PC-FT FC1-VLAN 5 -E 411 Fox TV Router 2960 24 TT Fox CSW1 POFT POD AUTY 50-24TT Swith1 Network 10.0.1.0/24 PCPT PES, VANE Network 100.50/24 VLAN5 Network 100.60/24 VLAN6 2960-24 FoxCore SW3 |▬▬▬▬▬▬▬▬▬ ▬▬▬▬▬▬▬▬▬▬ 2911 Hospita 172160.0/30 2960 24 TT FoxCore SWZ PC-PT PC2 DO 211 Game Nou Network 10.02.024 2960 24TT Swich3 1-4 Aber vok, that come when Network 1.1.2.0/30 Laptop-PT Lanbo Network 192.168.1.0/24 Network 1.1.1.0/30 Sava PT NTP Server Server-PT ONS-SERVER LARPT AP1 TabletFC-PT Tablet POD 291 ESPN Router 189.20.25.0/30 Network 100.4.0/24 WLC.PT ESPN Controller 50-24T ESPNSW2 LAP-FT AP2 SMARTPHONS.PT Smartphoneo FC-PT POS BR4321 ISP Public Foot: 209.165.200.225 200.165.200.240/27 290-2 ESPNGWA Server-PT espnsportlab POFT POS 2960-24TT ESPNSW3 0 X Back

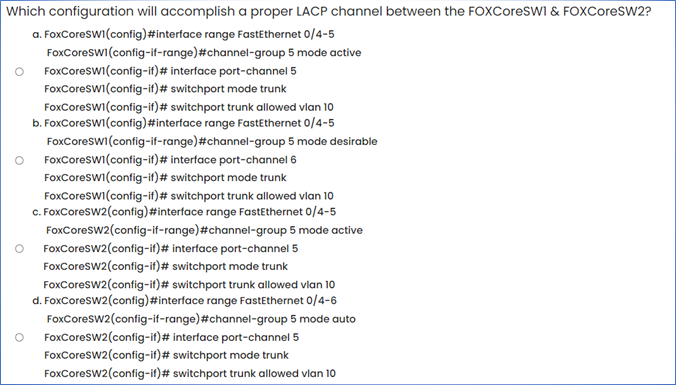

Which configuration will accomplish a proper LACP channel between the FOXCoreSWI & FOXCoreSW2? a. FoxCoreSW1(config)#interface range FastEthernet 0/4-5 FoxCoreSW1(config-if-range)#channel-group 5 mode active FoxCoreSW1(config-if)# interface port-channel 5 FoxCoreSWI (config-if)# switchport mode trunk FoxCoreSW1(config-if)# switchport trunk allowed vlan 10 b. FoxCoreSWI (config)# interface range FastEthernet 0/4-5 FoxCoreSW1(config-if-range)#channel-group 5 mode desirable FoxCoreSWI(config-if)# interface port-channel 6 FoxCoreSW1(config-if)# switchport mode trunk FoxCoreSW1(config-if)# switchport trunk allowed vlan 10 c. FoxCoresW2(config)# interface range FastEthernet 0/4-5 FoxCoreSW2(config-if-range) #channel-group 5 mode active FoxCoreSW2(config-if)# interface port-channel 5 FoxCoreSW2(config-if)# switchport mode trunk FoxCoreSW2(config-if)# switchport trunk allowed vlan 10 d. FoxCoresW2(config)#interface range FastEthernet 0/4-6 FoxCoreSW2(config-if-range)#channel-group 5 mode auto FoxCoreSW2(config-if)# interface port-channel 5 FoxCoreSW2(config-if)# switchport mode trunk FoxCoreSW2(config-if)# switchport trunk allowed vlan 10

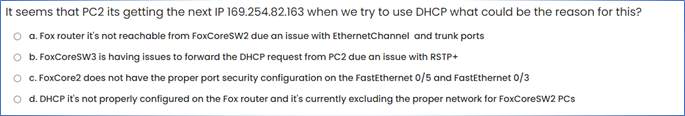

It seems that PC2 its getting the next IP 169.254.82.163 when we try to use DHCP what could be the reason for this? a. Fox router it's not reachable from FoxCoreSW2 due an issue with EthernetChannel and trunk ports b. FoxCoreSW3 is having issues to forward the DHCP request from PC2 due an issue with RSTP+ c. FoxCore2 does not have the proper port security configuration on the FastEthernet 0/5 and FastEthernet 0/3 d. DHCP it's not properly configured on the Fox router and it's currently excluding the proper network for FoxCoreSW2 PCS

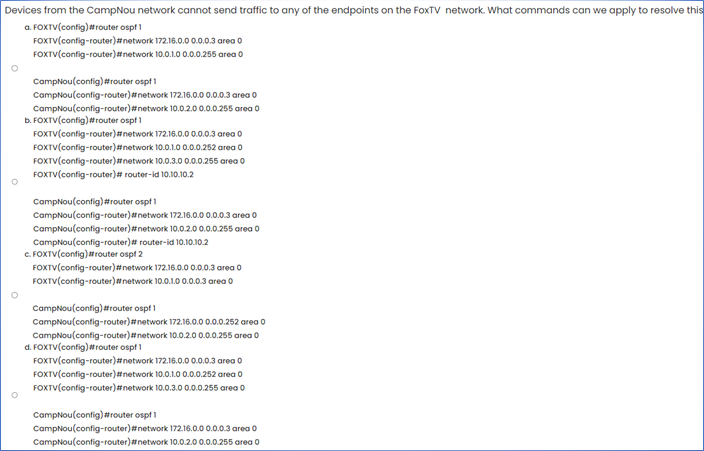

Devices from the Camp Nou network cannot send traffic to any of the endpoints on the FoxTV network. What commands can we apply to resolve this a. FOXTV(config)#router ospf1 FOXTV(config-router)#network 172.16.0.0 0.0.0.3 area 0 FOXTV(config-router) #network 10.0.1.0 0.0.0.255 area 0 CampNou(config)#router ospf1 CampNou(config-router) #network 172.16.0.0 0.0.0.3 area 0 Camp Nou(config-router) #network 10.0.2.0 0.0.0.255 area 0 b. FOXTV(config)#router ospf1 FOXTV(config-router) #network 172.16.0.0 0.0.0.3 area 0 FOXTV(config-router)#network 10.0.1.0 0.0.0.252 area 0 FOXTV(config-router) #network 10.0.3.0 0.0.0.255 area 0 FOXTV(config-router) # router-id 10.10.10.2 CampNou(config)#router ospf1 Camp Nou(config-router) #network 172.16.0.0 0.0.0.3 area 0 Camp Nou(config-router) #network 10.0.2.0 0.0.0.255 area 0 Camp Nou(config-router) # router-id 10.10.10.2 c. FOXTV (config)#router ospf 2 FOXTV(config-router)#network 172.16.0.0 0.0.0.3 area 0 FOXTV(config-router) #network 10.0.1.0 0.0.0.3 area 0 CampNou(config)#router ospf1 CampNou(config-router) #network 172.16.0.0 0.0.0.252 area 0 Camp Nou(config-router) #network 10.0.2.0 0.0.0.255 area 0 d. FOXTV (config)#router ospf1 FOXTV(config-router) #network 172.16.0.0 0.0.0.3 area 0 FOXTV(config-router) #network 10.0.1.0 0.0.0.252 area 0 FOXTV(config-router) #network 10.0.3.0 0.0.0.255 area 0 CampNou(config)#router ospf1 CampNou(config-router) #network 172.16.0.0 0.0.0.3 area 0 Camp Nou(config-router) #network 10.0.2.0 0.0.0.255 area 0
