A.A Hall probe calibrated to read 1.00 µV when placed in a 1.62T field is placed in a 0.127 T field. What is its outputvoltage?

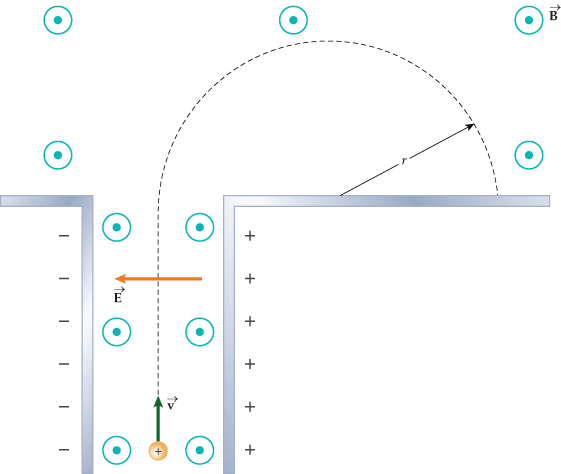

B. The figure below shows the schematic for a massspectrometer which consists of a velocity selector and a deflectionchamber. The magnitude of the magnetic field in both the velocityselector and the deflection chamber is 0.0810 T, andthe electric field between the plates of the velocity selectoris 6600 V/m. If a singly charged ion with a massof 1.67 10-27 kg travelsthrough the velocity selector and into the deflection chamber,determine the radius of its trajectory in the deflectionchamber.
_M
A A Hall Probe Calibrated To Read 1 00 Uv When Placed In A 1 62 T Field Is Placed In A 0 127 T Field What Is Its Output 1 (17.74 KiB) Viewed 37 times
B I 1 I I + I
