Exercise 4 You are designing an endoscope for use inside an air-filled body cavity. A lens at the end of the endoscope w

Post by answerhappygod »

Exercise 4 You Are Designing An Endoscope For Use Inside An Air Filled Body Cavity A Lens At The End Of The Endoscope W 1
Exercise 4 You Are Designing An Endoscope For Use Inside An Air Filled Body Cavity A Lens At The End Of The Endoscope W 1 (30.12 KiB) Viewed 64 times

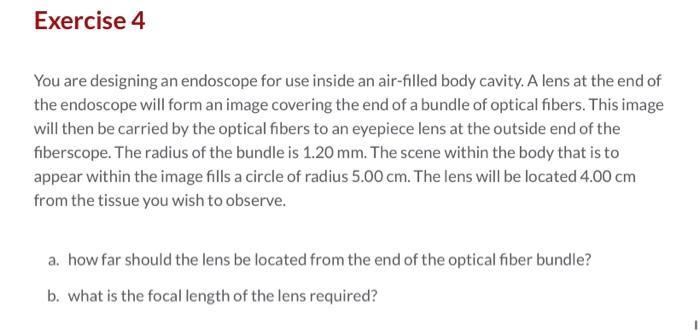

Exercise 4 You are designing an endoscope for use inside an air-filled body cavity. A lens at the end of the endoscope will form an image covering the end of a bundle of optical fibers. This image will then be carried by the optical fibers to an eyepiece lens at the outside end of the fiberscope. The radius of the bundle is 1.20 mm. The scene within the body that is to appear within the image fills a circle of radius 5.00 cm. The lens will be located 4.00 cm from the tissue you wish to observe. a. how far should the lens be located from the end of the optical fiber bundle? b. what is the focal length of the lens required?
