In the circuit of the figure = 3.73 kV, C = 8.00 μF, R₁ = R₂ = R3 = 0.920 MS2. With C completely uncharged, switch S is
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
In the circuit of the figure = 3.73 kV, C = 8.00 μF, R₁ = R₂ = R3 = 0.920 MS2. With C completely uncharged, switch S is

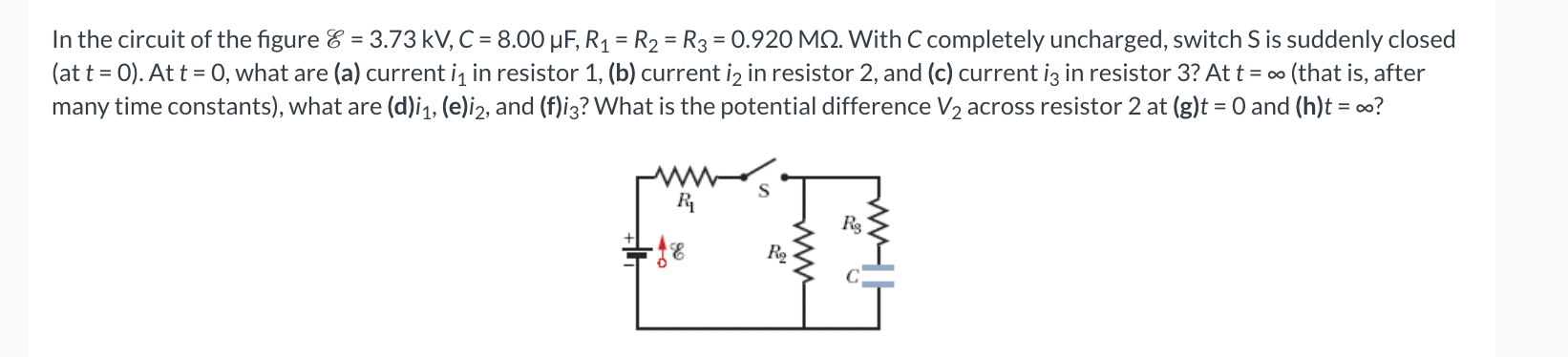

In the circuit of the figure = 3.73 kV, C = 8.00 μF, R₁ = R₂ = R3 = 0.920 MS2. With C completely uncharged, switch S is suddenly closed (at t = 0). At t = 0, what are (a) current i₁ in resistor 1, (b) current i₂ in resistor 2, and (c) current i3 in resistor 3? At t = ∞ (that is, after many time constants), what are (d)i₁, (e)i2, and (f)i3? What is the potential difference V₂ across resistor 2 at (g)t = 0 and (h)t = ∞? R₁ R₂ www.
