iTi (e) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the fig

[answerhappygod]

Iti E Find The Equivalent Capacitance Between Points A And B For The Group Of Capacitors Connected As Shown In The Fig 1 (23.17 KiB) Viewed 35 times

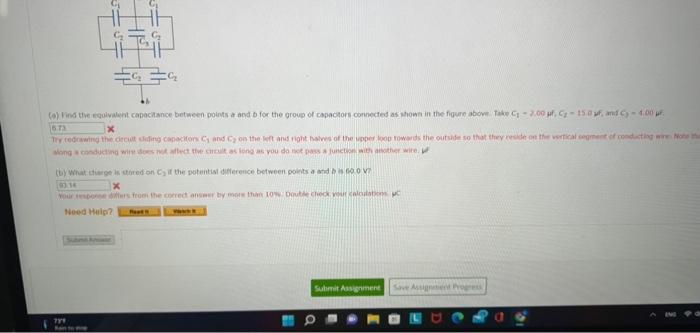

iTi (e) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above. Take C₁-2.00 uf, C-150f, and Cy-4.00 p 6.73 x Try redrawing the circult sliding capacitors C₁ and C₂ on the left and right halves of the upper loop towards the outside so that they reside on the vertical segment of conducting wire Nohe the along a conducting wire does not affect the circult as long as you do not pass a junction with another wire. (by What charge is stored on C, if the potential difference between points a and bis 600 7 93.34 x Your response differs from the correct answer by more than 10% Double check your calculations p Need Help? Fe 729 Bain to www Submit Assignment Save Assignment Progress
