What is the current and voltage at each resistor for the circuit below? (Answer: I₁ = 0.250A,V₁ = 6.243V, I₂ = 0.250A,V₂

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

What is the current and voltage at each resistor for the circuit below? (Answer: I₁ = 0.250A,V₁ = 6.243V, I₂ = 0.250A,V₂

Post by answerhappygod »

What Is The Current And Voltage At Each Resistor For The Circuit Below Answer I 0 250a V 6 243v I 0 250a V 1
What Is The Current And Voltage At Each Resistor For The Circuit Below Answer I 0 250a V 6 243v I 0 250a V 1 (40.17 KiB) Viewed 32 times

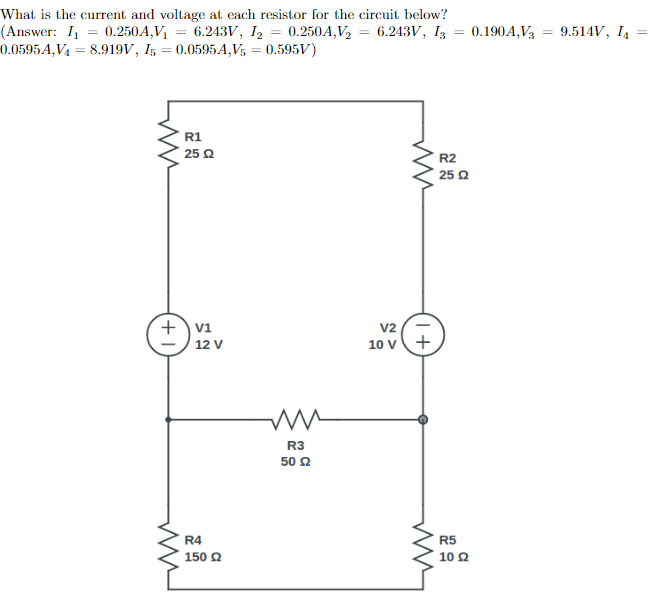

What is the current and voltage at each resistor for the circuit below? (Answer: I₁ = 0.250A,V₁ = 6.243V, I₂ = 0.250A,V₂ = 6.243V, 13 0.0595A,V₁ = 8.919V, I5 = 0.0595A,V₁ = 0.595V) = ww R1 25 22 + V1 12 V R4 150 Ω ww R3 50 £2 V2 10 V + R2 25 Ω R5 10 Q2 0.190A, V3 = 9.514V, IA
