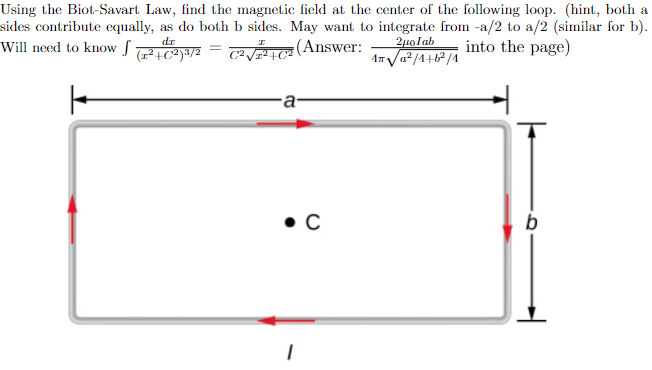

Using the Biot-Savart Law, find the magnetic field at the center of the following loop. (hint, both a sides contribute e

[answerhappygod]

Using The Biot Savart Law Find The Magnetic Field At The Center Of The Following Loop Hint Both A Sides Contribute E 1 (33.96 KiB) Viewed 32 times

Using the Biot-Savart Law, find the magnetic field at the center of the following loop. (hint, both a sides contribute equally, as do both b sides. May want to integrate from -a/2 to a/2 (similar for b). dr 2μolab Will need to know f = into the page) (1²+C²)3/2 C²√²+² (Answer: 1π√ √/a²/4+6²/4 F a- . C 1 b
