In the figure, four pulleys are connected by two belts. Pulley A (radius 16 cm) is the drive pulley, and it rotates at 1

[answerhappygod]

In The Figure Four Pulleys Are Connected By Two Belts Pulley A Radius 16 Cm Is The Drive Pulley And It Rotates At 1 1 (50.12 KiB) Viewed 34 times

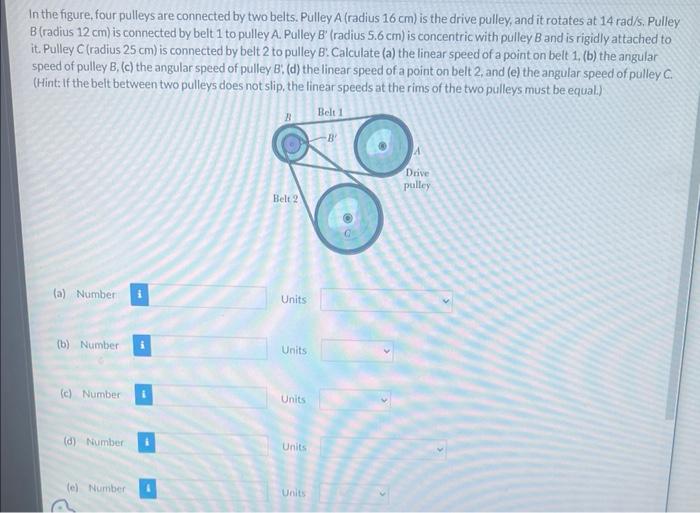

In the figure, four pulleys are connected by two belts. Pulley A (radius 16 cm) is the drive pulley, and it rotates at 14 rad/s. Pulley B (radius 12 cm) is connected by belt 1 to pulley A. Pulley B' (radius 5.6 cm) is concentric with pulley B and is rigidly attached to it. Pulley C (radius 25 cm) is connected by belt 2 to pulley B. Calculate (a) the linear speed of a point on belt 1, (b) the angular speed of pulley B. (c) the angular speed of pulley B. (d) the linear speed of a point on belt 2, and (e) the angular speed of pulley C. (Hint: If the belt between two pulleys does not slip, the linear speeds at the rims of the two pulleys must be equal.) Belt 1 (a) Number (b) Number (c) Number (d) Number: (e) Number 4 G B Belt 2 Units Units Units Units Units -B' A Drive pulley
