Q3) An RLC series circuit has a R = 100 resistor, C = 470μF capacitor, and a L = 20 mH inductor. If the voltage source h

Post by answerhappygod »

1
1 (32.07 KiB) Viewed 34 times

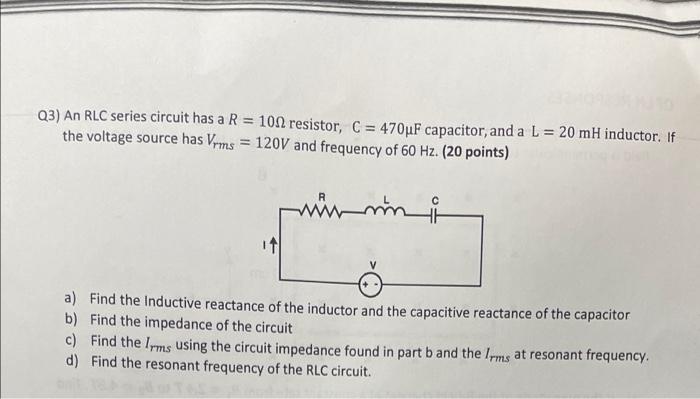

Q3) An RLC series circuit has a R = 100 resistor, C = 470μF capacitor, and a L = 20 mH inductor. If the voltage source has Vrms = 120V and frequency of 60 Hz. (20 points) w mm i Ď a) Find the Inductive reactance of the inductor and the capacitive reactance of the capacitor b) Find the impedance of the circuit c) Find the Irms using the circuit impedance found in part b and the Irms at resonant frequency. d) Find the resonant frequency of the RLC circuit.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
