examine the diagram below, the uniform 1.2×105N beam has one cable attached 22m from the wall, and another T2 at 50m from the wall. if cable T1 a tension of 6.5×104N, what is the tension in the other cable T2?

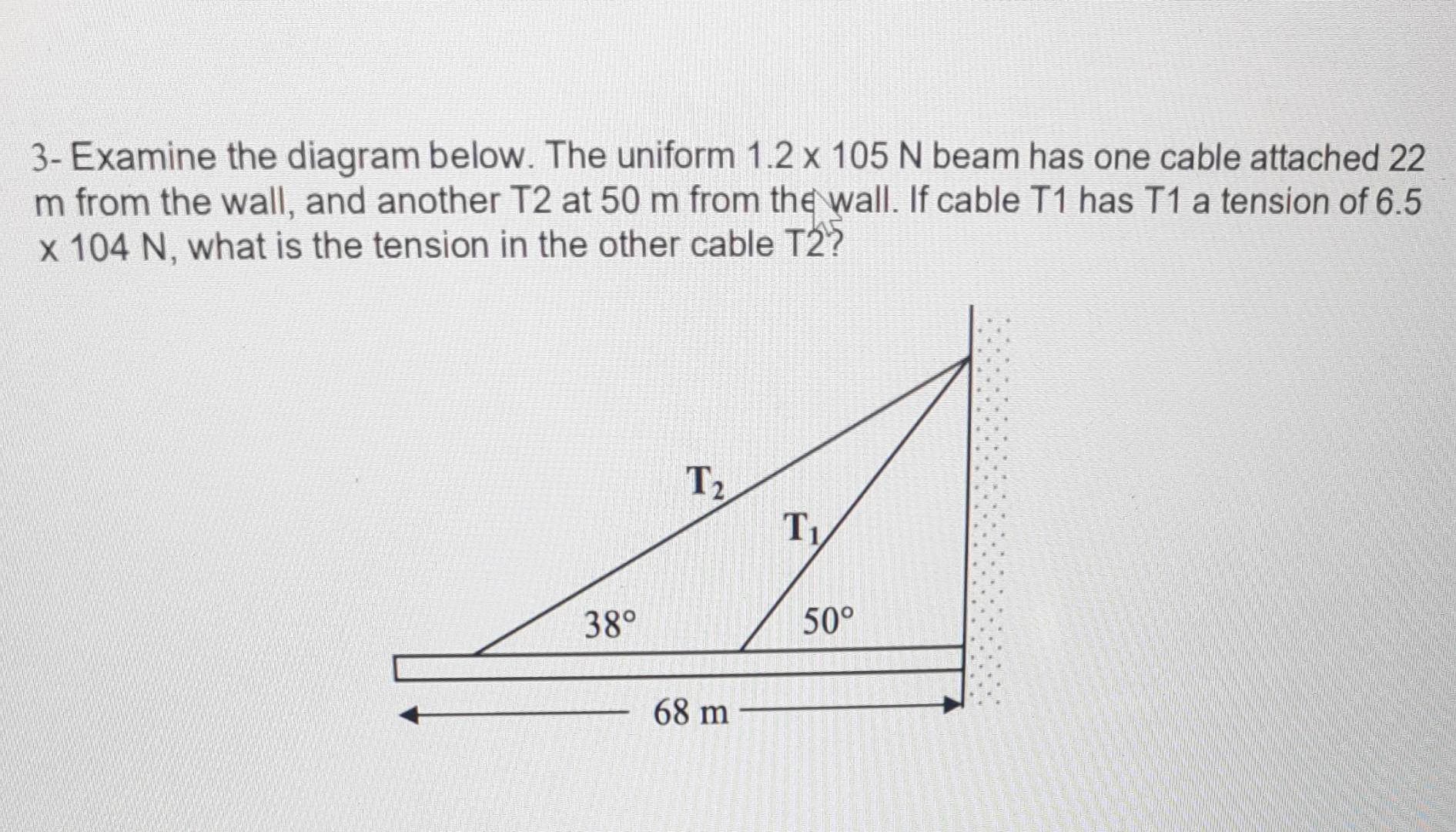

3-Examine the diagram below. The uniform 1.2 x 105 N beam has one cable attached 22 m from the wall, and another T2 at 50 m from the wall. If cable T1 has T1 a tension of 6.5 x 104 N, what is the tension in the other cable T2? 38° T₂ 68 m T₁ 50°

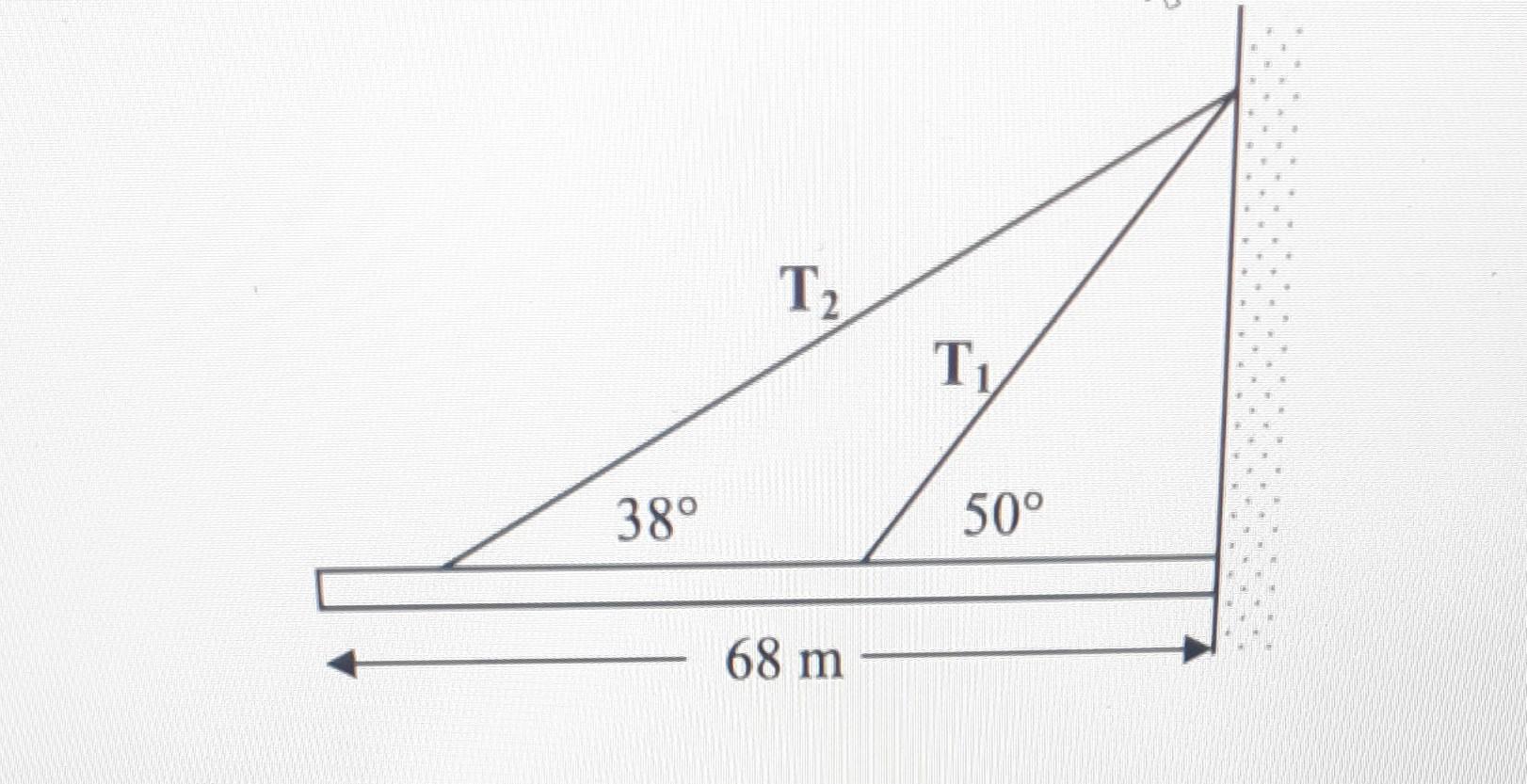

38° T₂ 68 m T₁ 50°
