11. Draw a picture of how you would set up an experimental circuit using wires and circuit elements for the following sc

Post by answerhappygod »

11 Draw A Picture Of How You Would Set Up An Experimental Circuit Using Wires And Circuit Elements For The Following Sc 1
11 Draw A Picture Of How You Would Set Up An Experimental Circuit Using Wires And Circuit Elements For The Following Sc 1 (145.22 KiB) Viewed 44 times
Please answer the first question in detail. I do notunderstand.

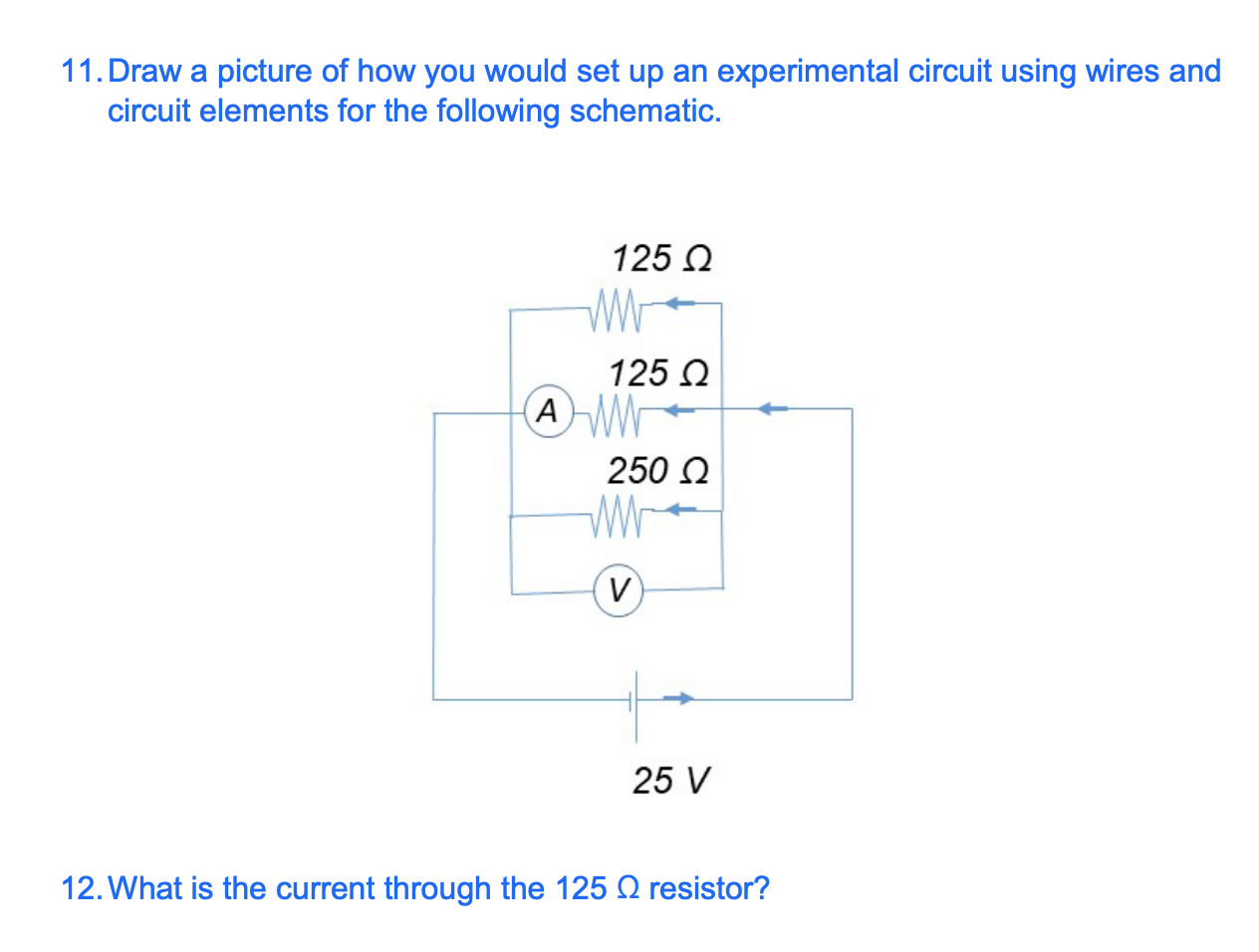

11. Draw a picture of how you would set up an experimental circuit using wires and circuit elements for the following schematic. 125 Ω WWW 125 Ω AWW 250 Ω www V 25 V 12. What is the current through the 125 resistor?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
