What are the expected readings of the following in the figure below? (R-6.100, AV-6.60) 10.00 ww www 5.000 V R www AV 4.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

What are the expected readings of the following in the figure below? (R-6.100, AV-6.60) 10.00 ww www 5.000 V R www AV 4.

Post by answerhappygod »

What Are The Expected Readings Of The Following In The Figure Below R 6 100 Av 6 60 10 00 Ww Www 5 000 V R Www Av 4 1
What Are The Expected Readings Of The Following In The Figure Below R 6 100 Av 6 60 10 00 Ww Www 5 000 V R Www Av 4 1 (15.5 KiB) Viewed 35 times

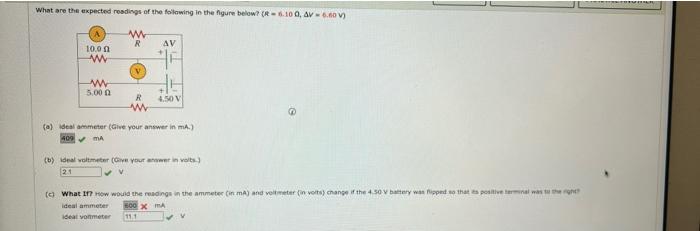

What are the expected readings of the following in the figure below? (R-6.100, AV-6.60) 10.00 ww www 5.000 V R www AV 4.50 V (a) ideal ammeter (Give your answer in mA.) 409✔✔ MA (b) ideal voltmeter (Give your answer in volts.) 21 (c) What If? How would the readings in the ammeter (in mA) and voltmeter (in volts) change if the 4.50 V battery was flipped so that es positive terminal was to the right ideal ammeter 600 X MA ideal voltmeter 11.1
