A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to th

[answerhappygod]

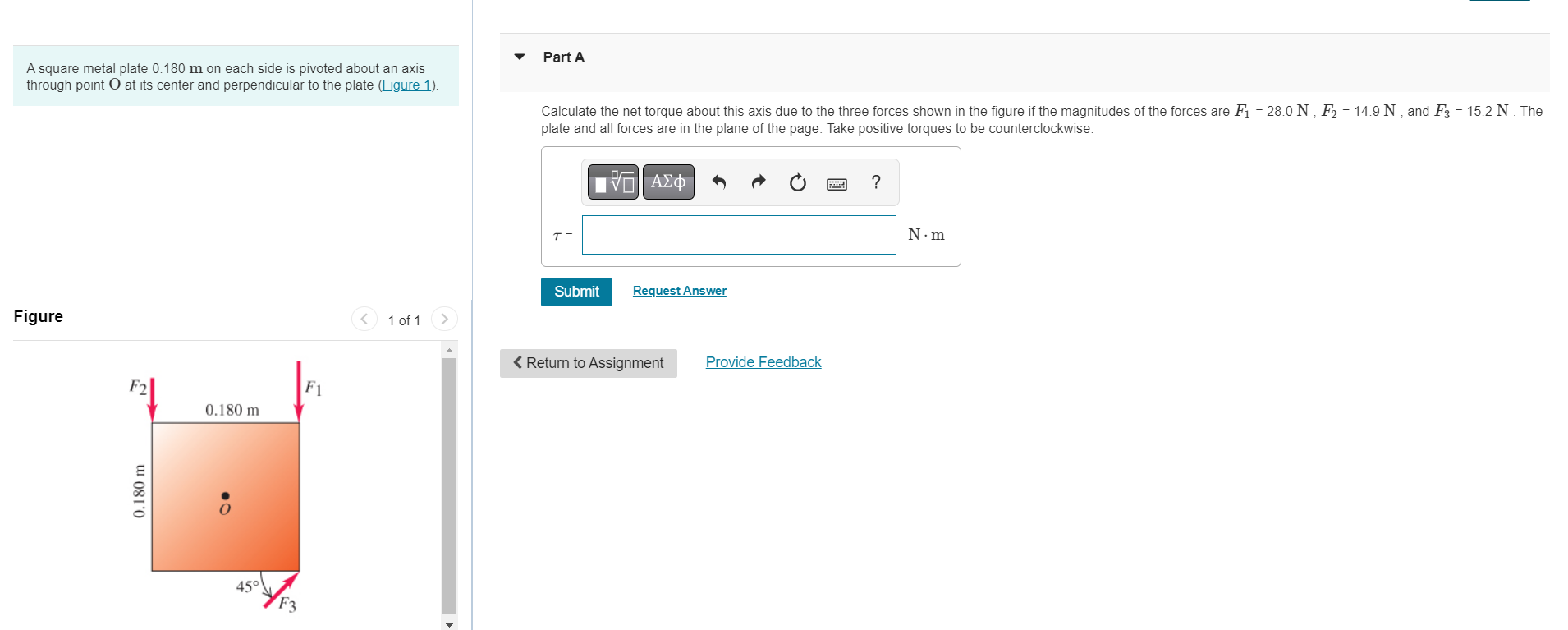

A Square Metal Plate 0 180 M On Each Side Is Pivoted About An Axis Through Point O At Its Center And Perpendicular To Th 1 (99.45 KiB) Viewed 28 times

A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate (Figure 1). Figure F2 0.180 m 0.180 m 450 F3 F1 1 of 1 Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F₁ = 28.0 N, F2 = 14.9 N, and F3 = 15.2 N. The plate and all forces are in the plane of the page. Take positive torques to be counterclockwise. IVE ΑΣΦ T = Submit Request Answer < Return to Assignment Provide Feedback ? N.m
