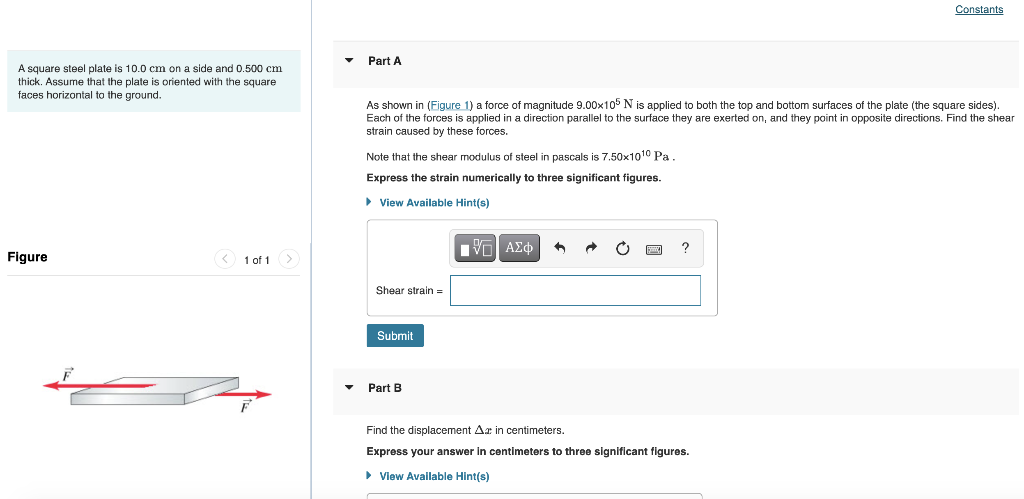

A square steel plate is 10.0 cm on a side and 0.500 cm thick. Assume that the plate is oriented with the square faces horizontal to the ground. Figure 1 of 1 Part A As shown in (Figure 1) a force of magnitude 9.00x105 N is applied to both the top and bottom surfaces of the plate (the square sides). Each of the forces is applied in a direction parallel to the surface they are exerted on, and they point in opposite directions. Find the shear strain caused by these forces. Note that the shear modulus of steel in pascals is 7.50x1010 Pa. Express the strain numerically to three significant figures. View Available Hint(s) Shear strain = Submit Part B IVE ΑΣΦ ? Constants Find the displacement Az in centimeters. Express your answer in centimeters to three significant figures. ▸ View Available Hint(s)
A square steel plate is 10.0 cm on a side and 0.500 cm thick. Assume that the plate is oriented with the square faces horizontal to the ground. Figure 1 of 1 > ► View Available Hint(s) Shear strain = Submit Part B Find the displacement Az in centimeters. Express your answer in centimeters to three significant figures. ► View Available Hint(s) Az = IV-| ΑΣΦ Submit IVLI ΑΣΦ ^ ? cm Constan
