Nala has decided to open a new college, name Nala's College. As the Senior Network Engineer hired in Nala's College, you

[answerhappygod]

Nala Has Decided To Open A New College Name Nala S College As The Senior Network Engineer Hired In Nala S College You 1 (146.2 KiB) Viewed 44 times

Nala Has Decided To Open A New College Name Nala S College As The Senior Network Engineer Hired In Nala S College You 2 (176.36 KiB) Viewed 44 times

Nala has decided to open a new college, name Nala's College. As the Senior Network Engineer hired in Nala's College, you are required to proposed the networking infrastructure in the new college. The college building consists of a total of three floors. The table below provides the information related to each floor. Floors Ground Floor CASE STUDY First Floor Second Floor Table 1: College Network's Requirement Department / Labs Technical Department Sales & Marketing Finance Human Resource Social Spaces for Parents Academic Suite Lecture Hall 1, Lecture Hall 2, Number of Device Required IP 4 20 10 10 200 200 Each Lecture Hall required 300 IP Address Engineering Lab 1, Engineering Lab 2, Engineering Lab 3, Engineering Lab 4, Computer Lab 1, Computer Lab 2, Computer Lab 3, Computer Lab 4, IP Address Computer Lab 5, Computer Lab 6, Computer Lab 7, Computer Lab 8, Each Engineering Lab required 30 IP Address Each Computer Lab required 40

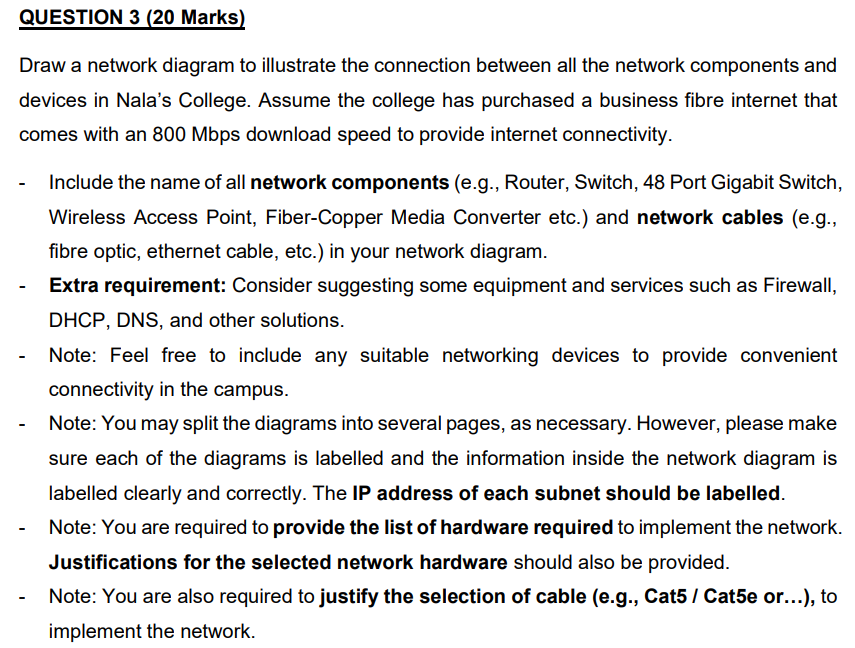

QUESTION 3 (20 Marks) Draw a network diagram to illustrate the connection between all the network components and devices in Nala's College. Assume the college has purchased a business fibre internet that comes with an 800 Mbps download speed to provide internet connectivity. Include the name of all network components (e.g., Router, Switch, 48 Port Gigabit Switch, Wireless Access Point, Fiber-Copper Media Converter etc.) and network cables (e.g., fibre optic, ethernet cable, etc.) in your network diagram. Extra requirement: Consider suggesting some equipment and services such as Firewall, DHCP, DNS, and other solutions. Note: Feel free to include any suitable networking devices to provide convenient connectivity in the campus. Note: You may split the diagrams into several pages, as necessary. However, please make sure each of the diagrams is labelled and the information inside the network diagram is labelled clearly and correctly. The IP address of each subnet should be labelled. Note: You are required to provide the list of hardware required to implement the network. Justifications for the selected network hardware should also be provided. Note: You are also required to justify the selection of cable (e.g., Cat5 / Cat5e or...), to implement the network.
