Consider three LANs interconnected by two routers, as shown below. [6.0: 2.0 each] (a) Assign IP addresses to all of the

[answerhappygod]

Consider Three Lans Interconnected By Two Routers As Shown Below 6 0 2 0 Each A Assign Ip Addresses To All Of The 1 (390.36 KiB) Viewed 41 times

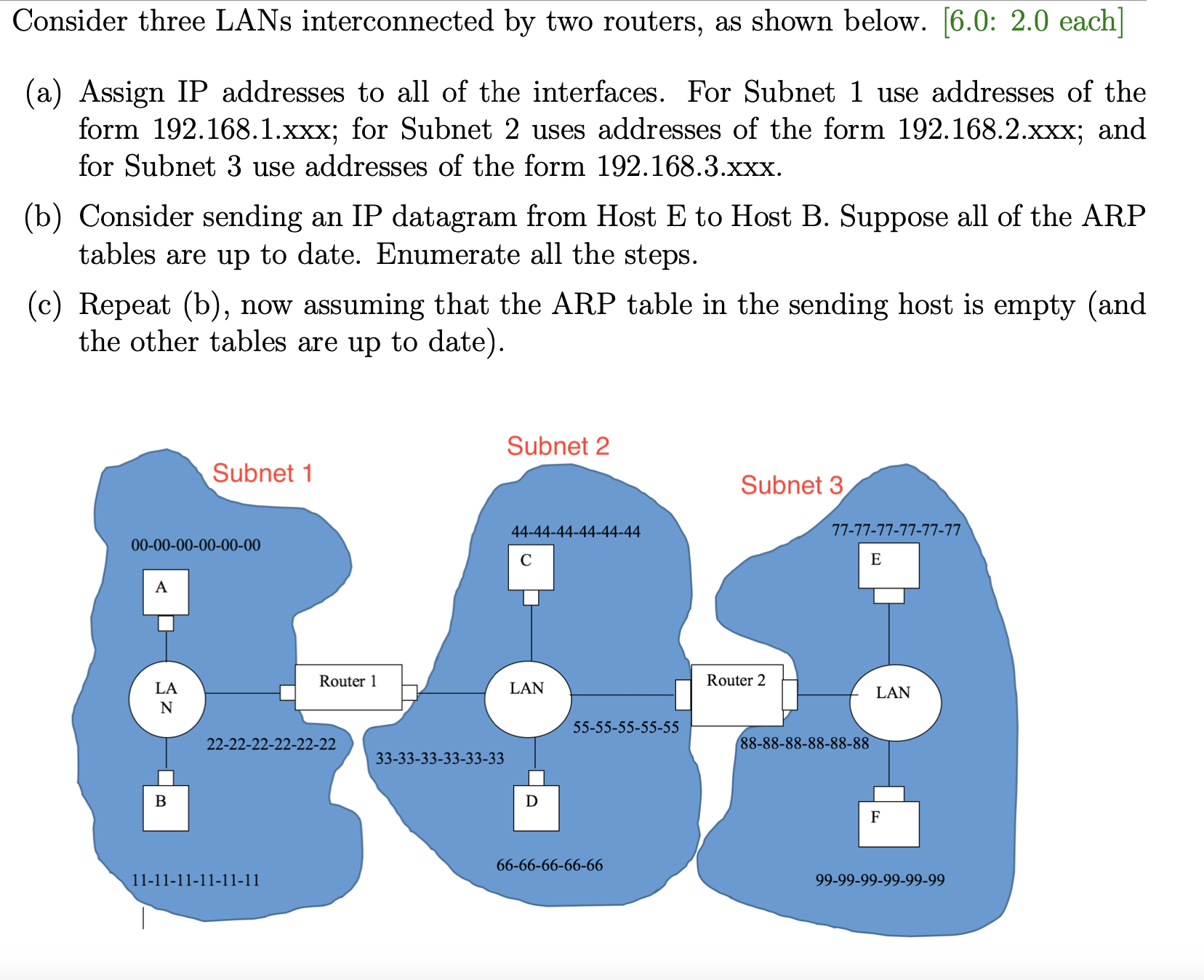

Consider three LANs interconnected by two routers, as shown below. [6.0: 2.0 each] (a) Assign IP addresses to all of the interfaces. For Subnet 1 use addresses of the form 192.168.1.xxx; for Subnet 2 uses addresses of the form 192.168.2.xxx; and for Subnet 3 use addresses of the form 192.168.3.xxx. (b) Consider sending an IP datagram from Host E to Host B. Suppose all of the ARP tables are up to date. Enumerate all the steps. (c) Repeat (b), now assuming that the ARP table in the sending host is empty (and the other tables are up to date). 00-00-00-00-00-00 A 44-44-44-44-44-44 C Router 1 Router 2 848 LAN 55-55-55-55-55 33-33-33-33-33-33 D 66-66-66-66-66 LA Subnet 1 N B 22-22-22-22-22-22 Subnet 2 11-11-11-11-11-11 Subnet 3 77-77-77-77-77-77 E 88-88-88-88-88-88 LAN F 99-99-99-99-99-99
