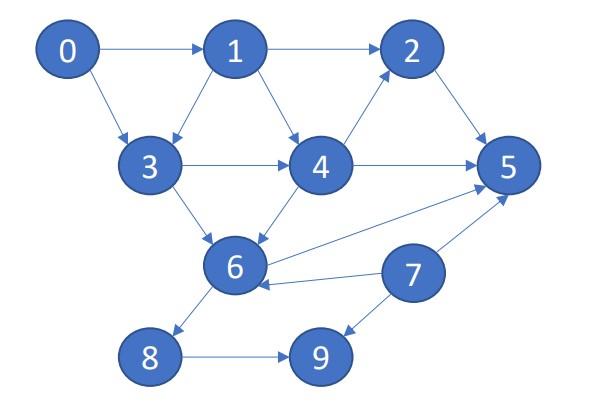

- Filling Code Into Enter Your Code Here To Implement Breadth First Search For The Graph Include Stdio H Include S 1 (19.56 KiB) Viewed 43 times
// size of graph - 10 nodes#define GSIZE 10
// define a graph type - two dimensional array - associationmatrixtypedef bool graph_t[GSIZE][GSIZE];
// debug print the graph as boolean matrixvoid printGraphAsMatrix(graph_t g, int size){ int i, j;
printf("\nGRAPH\n");
for (i=0; i<size; i++) { for (j=0; j<size; j++) { if (g[j]) { printf("|true"); } else { printf("| -- "); } } printf("|\n"); }}
// print the graph as an list of edgesvoid printGraphAsList(graph_t g, int size){ int i, j;
printf("\nGRAPH\n");
for (i=0; i<size; i++) { for (j=0; j<size; j++) { if (g[j]) { printf("%d -> %d\n",i,j); } } }}
/* * queue * +--------+--------+ * | tail_p | head_p+----------------------------------------+ * +--+-----*--------+ | * | | * V V * +--------+------+---------+ +--------+------+---------+ +--------+------+---------+ * | left_p | data | right_p +->| left_p | data |right_p +->| left_p | data | right_p +->NULL * | | | |<-+ | | |<-+ | | | * +--+-----+------+---------+ +--------+------+---------+ +--------+------+---------+ * | node node node * V * NULL */
//---------------------------- NODE---------------------------- // doubly linked list nodetypedef struct nd { int data; struct nd* left_p; struct nd* right_p;} node_t;
// create new node with value d and NULL left & rightpointersnode_t* newNode (int d) { node_t* n_p = NULL; // temp pointer to hold newnode n_p = (node_t*)malloc(sizeof(node_t)); // create newnode if (n_p != NULL) { n_p->data = d; // put data innode n_p->left_p = NULL; n_p->right_p = NULL; } return n_p;};
// free the node pointed to by n_p// fragile assumption: this function does not free up nodes pointedto by left/right pointersvoid freeNode (node_t* n_p) { if (n_p != NULL) { free(n_p); } return;};
//---------------------------- QUEUE ---------------------------- // a queue - combining a head and a tail pointertypedef struct q { node_t* head_p; node_t* tail_p;} queue_t;
// create new empty queue (head and tail are set to NULL)queue_t* newQueue() { queue_t* q_p; // temp pointer to hold newly createdqueue q_p = (queue_t*)malloc(sizeof(queue_t)); // createnew queue if (q_p != NULL) { q_p->head_p = NULL; q_p->tail_p = NULL; } return q_p;};
// is the queue empty?bool isEmpty(queue_t* q_p) { bool b = true; // temporary bool to hold return value- initalize to default value if (q_p != NULL) { b = (q_p->head_p == NULL); } return b;};
// function to add a new node with data d to tail of thequeuevoid enqueue(queue_t* q_p, int d) { node_t* n_p = NULL; // temp node pointer if (q_p != NULL) {
if (isEmpty(q_p)) { // queue is empty so insertion is easy q_p->tail_p = newNode(d); // createnew node and put it in the tail q_p->head_p = q_p->tail_p; // in queuewith 1 node, head and tail point to same ndoe } else { // queue is not empty n_p = q_p->tail_p; // get a pointer to the tail fo the queue q_p->tail_p = newNode(d); // createnew node and put it in the tail n_p->left_p = q_p->tail_p; // oldtail's left pointer points back to new tail node q_p->tail_p->right_p = n_p; // newtail's right pointer points to old tail node } } return;};
// function to take the node off the head of the queue andreturn its valueint dequeue(queue_t* q_p) { int t = -9999; // temp int to holdreturn val with arbitrary error value of -9999 node_t* n_p = NULL; // temp node poitner if (q_p != NULL) { n_p = q_p->head_p; // get a pointer to thehead of the queue
if (n_p != NULL) { t = n_p->data; // get thevalue of data in the head of the queue
if (q_p->head_p == q_p->tail_p) { // only one node in the queue,clear queue head and tail q_p->head_p = NULL; q_p->tail_p = NULL; } else { // mulitple nodes in queue,clean up head pointer and new head of queue q_p->head_p = n_p->left_p; // new head points to next (left of old head) element ofqueue q_p->head_p->right_p = NULL; // newhead node has NULL right pointer } freeNode(n_p); // free up the node thatwas dequeued } } return t;};
// if queue is not empty, then clean it out -- then free the queuestructvoid freeQueue(queue_t* q_p) { if (q_p != NULL) { // make sure the queue is empty while (!isEmpty(q_p)) { dequeue(q_p); }
// free up the queue itself free(q_p); } return;};
int main () {
// define graph as association matrix graph_t E = { //0 1 2 3 4 5 6 7 8 9 <- destination vertex { false, true, false, true, false, false,false, false, false, false}, // vertex 0 -> { false, false, true, true, true,false, false, false, false, false}, // vertex 1 -> { false, false, false, false, false, true,false, false, false, false}, // vertex 2 -> { false, false, false, false, true, false, true, false, false, false}, // vertex 3 -> { false, false, false, false, false, true, true, false, false, false}, // vertex 4 -> { false, false, false, false, false, false, false,false, false, false}, // vertex 5 -> { false, false, false, false, false, true,false, false, true, false}, // vertex 6 -> { false, false, false, false, false, true, true, false, false, true}, // vertex 7 -> { false, false, false, false, false, false, false,false, false, true}, // vertex 8 -> { false, false, false, false, false, false, false,false, false, false}, // vertex 9 -> };
queue_t* q = newQueue(); // work queue int i; int j; int current; bool done[GSIZE]; // are we done with this node?
// initialize finsihed to false - not done with any nodeyet for (i=0; i<GSIZE; i++) { done = false; }
// debug print out the graph - as a list printGraphAsList(E,GSIZE);
// add start node to work queue enqueue(q,0);
printf("\nBREADTH FIRST TRAFERSAL\n"); while (!isEmpty(q)) {
// INSERT YOUR CODE HERE }
// print out nodes that are unreachable printf("\nUNREACHABLE NODES: "); for (i=0; i<GSIZE; i++) { if (!done) { printf("%d ", i); } } printf("\n"); printf("----------\n"); // free up the queue freeQueue(q); return 0;}
0 3 8 1 6 4 9 2 7 5
GRAPH 0 > 1 0 - 3 1 -> 2 1 -> 3 1 -> 4 2 > 5 - 3 -> 4 3 -> 6 4 -> 5 4 -> 6 6 -> 5 6 - 8 7 -> 5 7 -> 6 7 -> 9 8 -> 9 BREADTH FIRST TRAFERSAL NODE: 0 NODE: 1 NODE: 3 NODE: 2 NODE: 4 NODE: 6 NODE: 5 NODE: 8 NODE: 9 UNREACHABLE NODES: 7
