and IP addressing based on the following address allocationrequirement for each subnet as shown
in Figure 1.
• The SWE LAN requires 25 addresses.
• The DMT LAN requires 15 addresses.
• The AI LAN requires 55 addresses.
• The EE LAN requires 12 addresses.
• The HR LAN requires 22 addresses.
• The Admin LAN requires 32 addresses
• Each link segment between two Layer 3 switches requires 2addresses.
- Your Organization Is Allocated A Block Of Address 10 15 0 0 23 You Are Required To Plan The Subnets And Ip Addressing B 1 (247.15 KiB) Viewed 59 times
1. Perform subnet planning for your organisation’s network.
Ø Show your work of subnet planning.
Ø Assign VLAN ID and list the following address information foreach subnet1:
• Network address
• Usable IP address range
• Broadcast address
• Decimal / CIDR Subnet mask
2. Table 1 is used for your configuration plan.
Ø Fill in the IP address and subnet mask for each of the PC andVLANIF’s interface.
3. Connect each device as shown in Figure 1.
• Select “S5700” in eNSP as the Layer 3 switch for SW1, SW2, andSW3. (You can use
S3700 if there is any issue of using S5700 with your eNSP)
• Use “S3700” in eNSP for the remaining switches in thediagram.
• You can select any appropriate switch’s interfaces for thelink connection. Make sure you
perform your configuration on the correct interfaces in thesubsequent steps.
5. Configure the switches with VLANs and assign IP addresses tothe interfaces based on the
results that you have obtained in Table 1.
Ø Take screenshots of your configuration on switch SW1.
Ø Take screenshots of your configuration on switch SW2.
Ø Take screenshots of your configuration on switch SW3.
6. Configure the PCs based on the results that you have obtainedin Table 1.
- Your Organization Is Allocated A Block Of Address 10 15 0 0 23 You Are Required To Plan The Subnets And Ip Addressing B 2 (41.05 KiB) Viewed 59 times

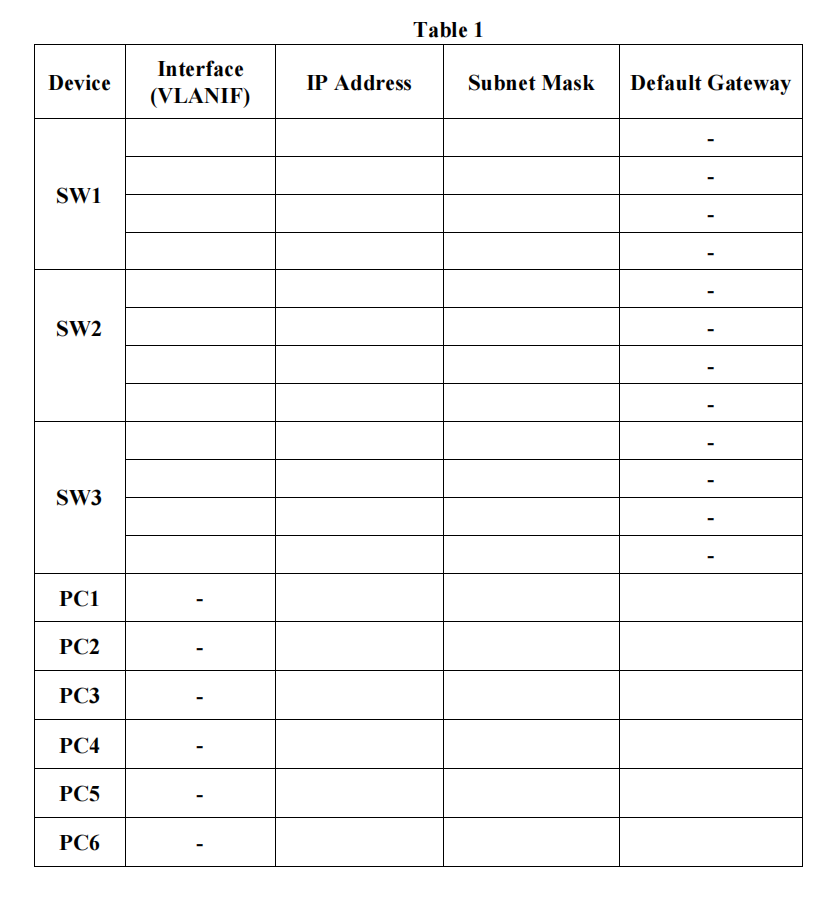

Device SW1 SW2 SW3 PC1 PC2 PC3 PC4 PC5 PC6 Interface (VLANIF) IP Address Table 1 Subnet Mask Default Gateway I
