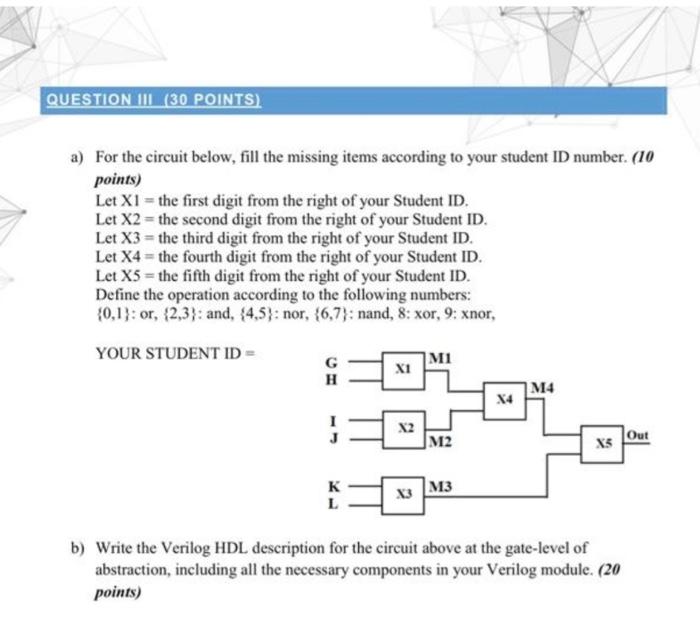

QUESTION III (30 POINTS) a) For the circuit below, fill the missing items according to your student ID number. (10 points) Let X1 = the first digit from the right of your Student ID. Let X2 = the second digit from the right of your Student ID. Let X3 = the third digit from the right of your Student ID. Let X4 = the fourth digit from the right of your Student ID. Let X5 = the fifth digit from the right of your Student ID. Define the operation according to the following numbers: (0,1): or, (2,3): and, (4,5): nor, (6,7): nand, 8: xor, 9: xnor, YOUR STUDENT ID= H K 回 X1 X2 X3 MI M2 M3 X4 M4 X5 b) Write the Verilog HDL description for the circuit above at the gate-level of abstraction, including all the necessary components in your Verilog module. (20 points) Out
QUESTION III (30 POINTS) a) For the circuit below, fill the missing items according to your student ID number. (10 points) Let X1 = the first digit from the right of your Student ID. Let X2 = the second digit from the right of your Student ID. Let X3 = the third digit from the right of your Student ID. Let X4 = the fourth digit from the right of your Student ID. Let X5 = the fifth digit from the right of your Student ID. Define the operation according to the following numbers: (0,1): or, (2,3): and, (4,5): nor, (6,7): nand, 8: xor, 9: xnor, YOUR STUDENT ID= H K 回 X1 X2 X3 MI M2 M3 X4 M4 X5 b) Write the Verilog HDL description for the circuit above at the gate-level of abstraction, including all the necessary components in your Verilog module. (20 points) Out
