A 100-mm-diameter metal cylinder supports a load consisting of force P and couple T, as shown in the accompanying figure

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A 100-mm-diameter metal cylinder supports a load consisting of force P and couple T, as shown in the accompanying figure

Post by answerhappygod »

A 100 Mm Diameter Metal Cylinder Supports A Load Consisting Of Force P And Couple T As Shown In The Accompanying Figure 1
A 100 Mm Diameter Metal Cylinder Supports A Load Consisting Of Force P And Couple T As Shown In The Accompanying Figure 1 (56.8 KiB) Viewed 35 times

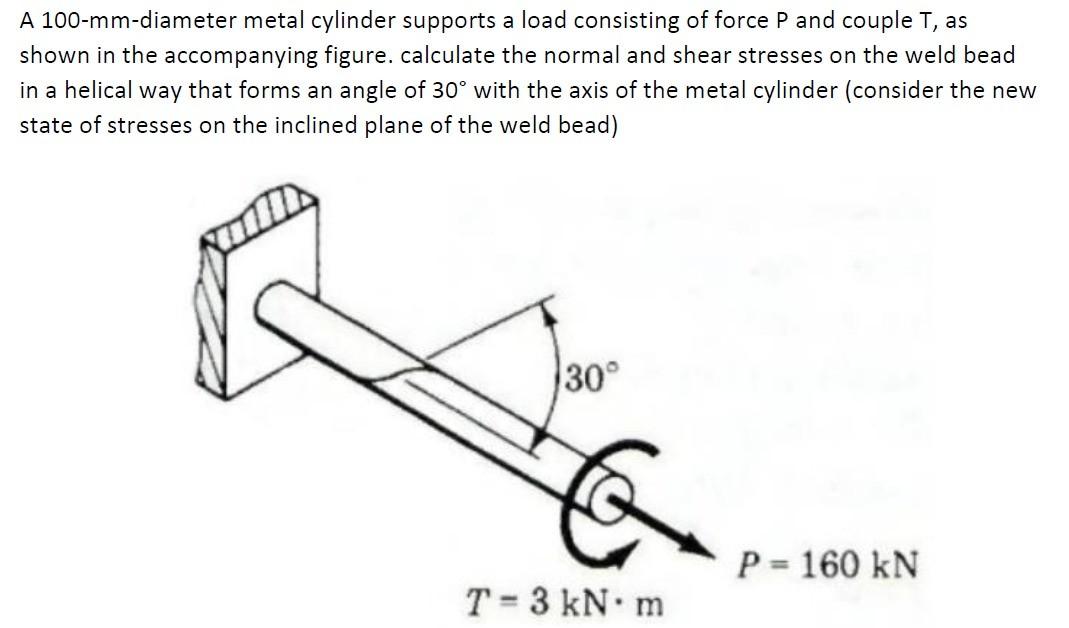

A 100-mm-diameter metal cylinder supports a load consisting of force P and couple T, as shown in the accompanying figure. calculate the normal and shear stresses on the weld bead in a helical way that forms an angle of 30° with the axis of the metal cylinder (consider the new state of stresses on the inclined plane of the weld bead) 30° T = 3 kN m P = 160 kN
