mabled: Exam 1 - Chapter 4 Required information The couple M = 122 N·m acts in a vertical plane and is applied to a beam

[answerhappygod]

Mabled Exam 1 Chapter 4 Required Information The Couple M 122 N M Acts In A Vertical Plane And Is Applied To A Beam 1 (63.66 KiB) Viewed 26 times

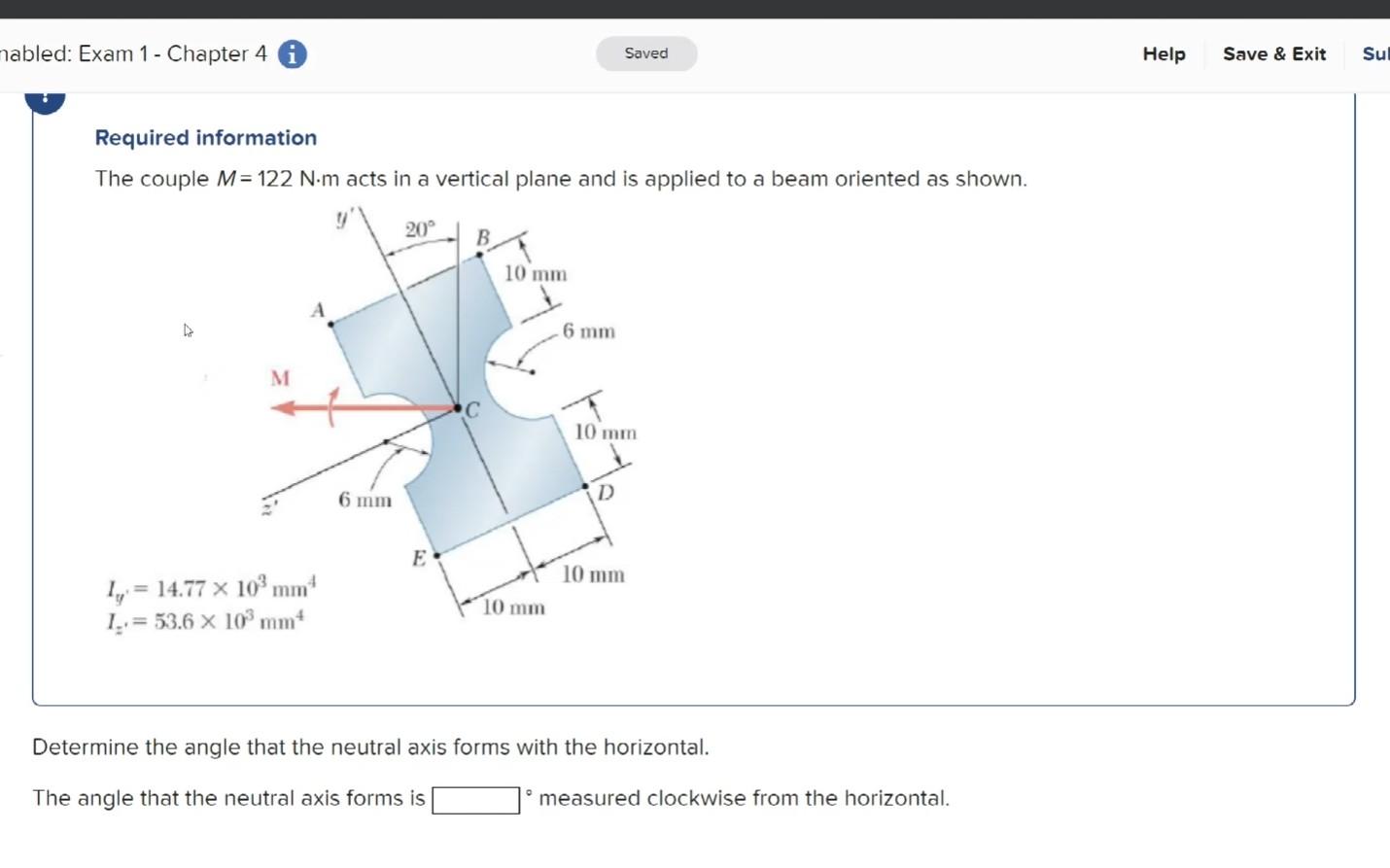

mabled: Exam 1 - Chapter 4 Required information The couple M = 122 N·m acts in a vertical plane and is applied to a beam oriented as shown. D M I= 14.77 x 10³ mm* 1= 53.6 x 10³ mm² 6 mm 20° E B 10 mm 10 mm 6 mm Saved 10 mm D 10 mm Determine the angle that the neutral axis forms with the horizontal. The angle that the neutral axis forms is measured clockwise from the horizontal. Help Save & Exit Sul
