Required information The couple M = 119 N-m acts in a vertical plane and is applied to a beam oriented as shown. I= 14.7

Post by answerhappygod »

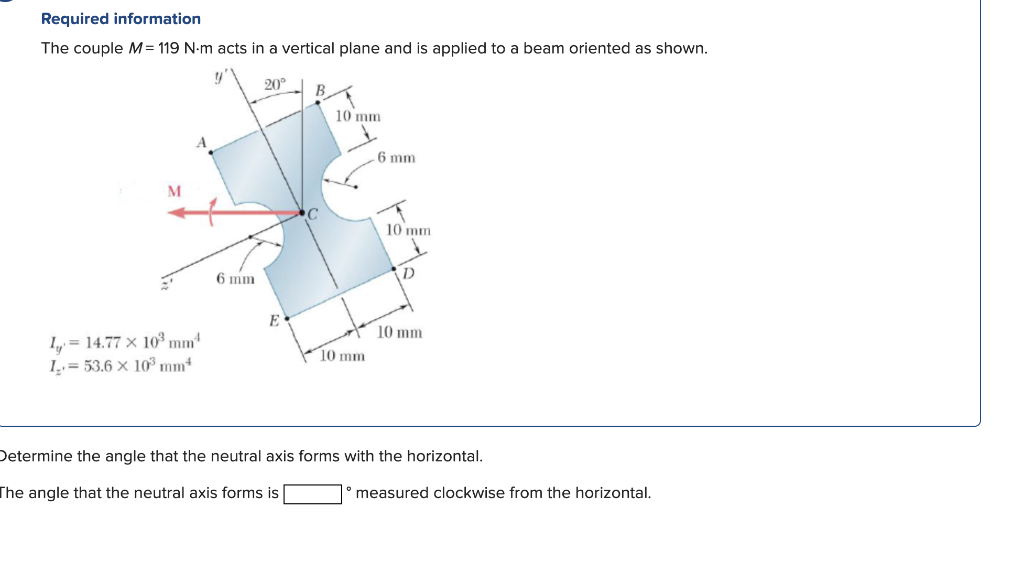

Required Information The Couple M 119 N M Acts In A Vertical Plane And Is Applied To A Beam Oriented As Shown I 14 7 1
Required Information The Couple M 119 N M Acts In A Vertical Plane And Is Applied To A Beam Oriented As Shown I 14 7 1 (107.92 KiB) Viewed 37 times
Required information The couple M = 119 N-m acts in a vertical plane and is applied to a beam oriented as shown. I= 14.77 x 10³ mm²¹ 153.6 x 10³ mm* 6 mm 20° E 10 mm 10 mm 6 mm 10 mm 10 mm Determine the angle that the neutral axis forms with the horizontal. The angle that the neutral axis forms is measured clockwise from the horizontal.
