The dynamics of a plane pendulum with mass 1kg subject to someexternal force is described by
x''+g/lsin(x)=u(t)
where x is the angular displacement, l is the length of itslink, and g is the standard gravity. Which of the following istrue? let l=1m, g=10m/s^2 and u=5*sqrt(3). Then the correspondingequilibrium for x is

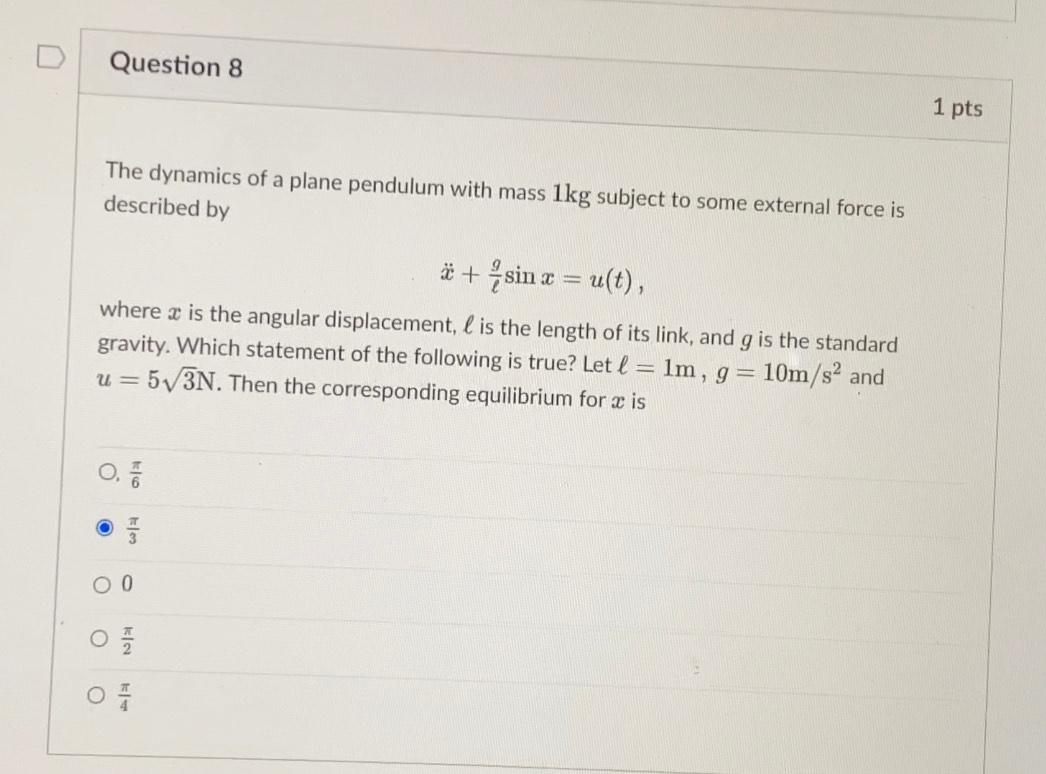

The Dynamics Of A Plane Pendulum With Mass 1kg Subject To Some External Force Is Described By X G Lsin X U T Where X 1 (70.61 KiB) Viewed 23 times
Question 8 The dynamics of a plane pendulum with mass 1kg subject to some external force is described by * + sin x = u(t), where is the angular displacement, is the length of its link, and g is the standard gravity. Which statement of the following is true? Let = 1m, g=10m/s² and u = 5√3N. Then the corresponding equilibrium for x is 0.-€ O O 0 0 O 43 05/1 KA 1 pts
