The bode diagram of a transfer function H(s) is shownbelow?
The transfer function H(s) is
The Bode Diagram Of A Transfer Function H S Is Shown Below The Transfer Function H S Is 1 (73.1 KiB) Viewed 28 times
The Bode Diagram Of A Transfer Function H S Is Shown Below The Transfer Function H S Is 2 (27.86 KiB) Viewed 28 times

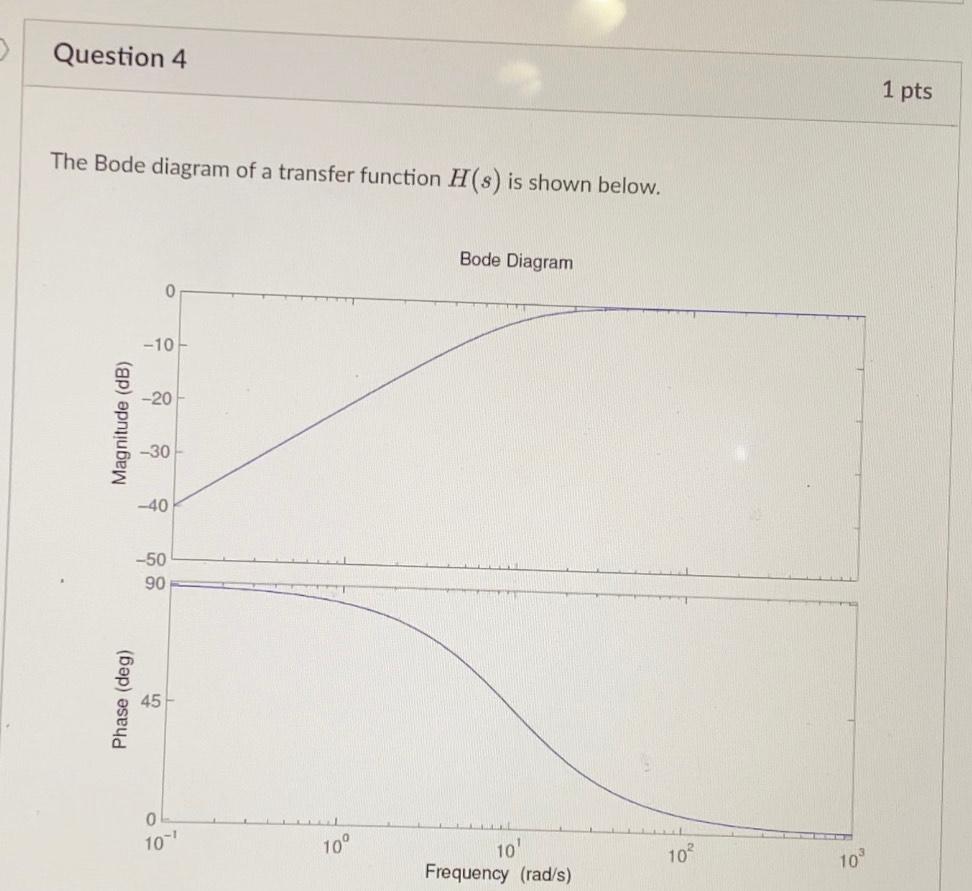

D Question 4 The Bode diagram of a transfer function H(s) is shown below. Magnitude (dB) Phase (deg) 0 -10- -20 -30 -40 -50 90 0 10-¹ 10° Bode Diagram 10 Frequency (rad/s) 10² 10³ 1 pts

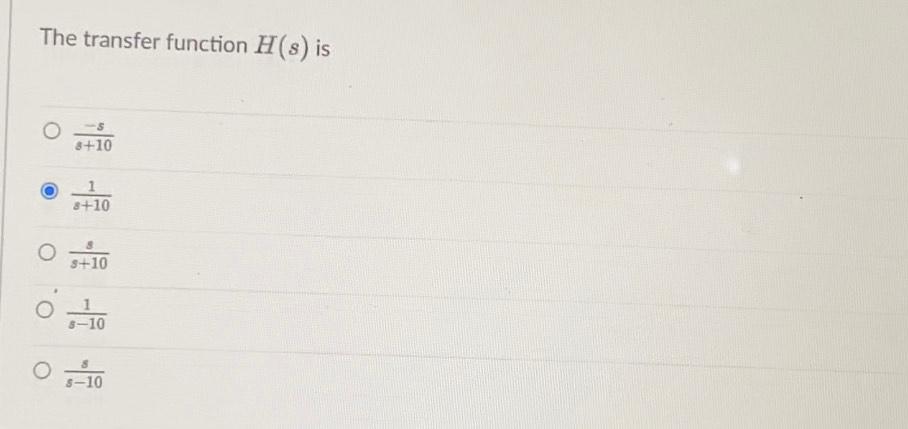

The transfer function H(s) is O O O 8+10 8+10 s+10 s-10 s-10
