Assume that a second-order system has the transferfunction
P(s)=1/s^2+3s+5
Suppose we are using PI control, where C(s)=1+2/s, for thesystem below.
What is the closed-loop transfer function from r to y?
Assume That A Second Order System Has The Transfer Function P S 1 S 2 3s 5 Suppose We Are Using Pi Control Where C S 1 (93.81 KiB) Viewed 23 times

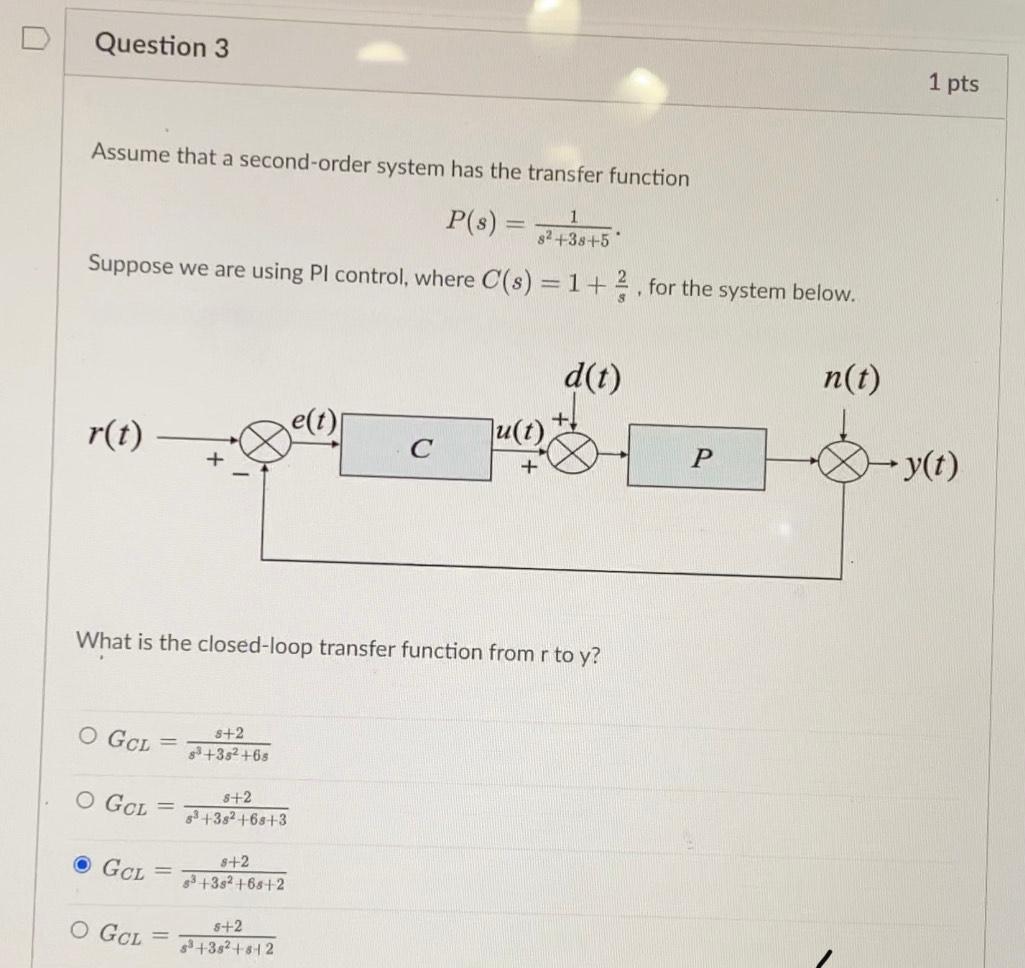

Question 3 Assume that a second-order system has the transfer function P(s) = 8² +38+5 Suppose we are using Pl control, where C(s) = 1 + 2. for the system below. r(t) O GCL O GCL = GCL What is the closed-loop transfer function from r to y? O GCL = = 8+2 8³ +38² +68 8+2 83 +382 +68+3 8+2 8³ +38² +68+2 e(t) $+2 8³ +38² +812 C u(t)) d(t) P n(t) 1 pts + y(t)
