A single strain gage forming an angle B = 15° with respect to horizontal plane (x-z plane) is used to measure gage press
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A single strain gage forming an angle B = 15° with respect to horizontal plane (x-z plane) is used to measure gage press

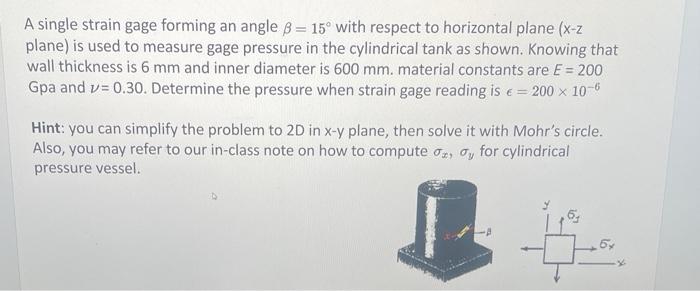

A single strain gage forming an angle B = 15° with respect to horizontal plane (x-z plane) is used to measure gage pressure in the cylindrical tank as shown. Knowing that wall thickness is 6 mm and inner diameter is 600 mm. material constants are E = 200 Gpa and v=0.30. Determine the pressure when strain gage reading is = 200 × 10-6 6 Hint: you can simplify the problem to 2D in x-y plane, then solve it with Mohr's circle. Also, you may refer to our in-class note on how to compute , dy for cylindrical pressure vessel. $ 5%
